Understanding the Plastic Thick Sheet Extrusion Process
Plastic thick sheet extruders are essential equipment in the plastic processing industry, specifically designed to produce plastic sheets typically exceeding 1.5mm in thickness. These sheets find extensive applications across various industrial sectors, including automotive interiors, construction materials, transportation equipment, packaging containers, and medical devices. Extrusion molding, as one of the primary forming methods for plastics, has become increasingly vital as plastic sheet products continue to gain prominence in construction, transportation, automotive, electronics, and packaging industries.

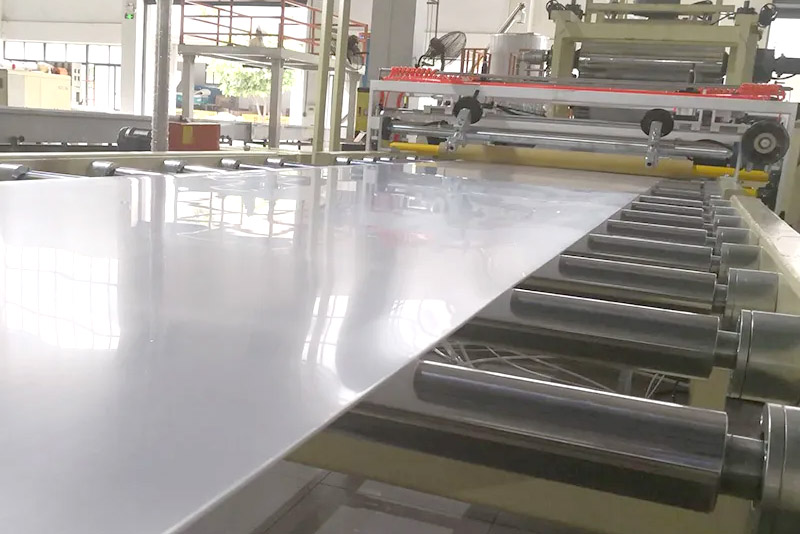

The fundamental principle of plastic thick sheet extrusion involves thermoplastic raw materials (usually in granular or powder form) being heated, melted, and plasticized through the extruder. The material then passes through a die to form a sheet of specific width and thickness, which is subsequently calibrated by a three-roll calibration unit, cooled, and cut to required dimensions. A complete extrusion production line typically consists of the main extruder, die, cooling and calibration system, haul-off equipment, and cutting or winding devices.
Selecting an appropriate plastic thick sheet extruder is crucial for manufacturing enterprises, as it not only affects product quality and production efficiency but also directly relates to production costs and return on investment. A high-performance thick sheet extruder should consistently produce plastic sheets that meet dimensional accuracy and surface quality requirements while maintaining low energy consumption and operational costs.
Product Dimensions and Thickness Requirements
The selection of a plastic thick sheet extruder primarily depends on the physical dimensions of the products you plan to manufacture. This includes the maximum length, width, and height of the product. Extruder specifications are typically defined by the maximum sheet width and thickness they can handle. For instance, small extruders might be suitable for sheets less than 1500mm wide and 1.5-5mm thick, while large industrial-grade extruders can produce sheets exceeding 2500mm in width and 20mm or more in thickness.
Product wall thickness is another critical consideration. Different thickness requirements influence the choice of extruder model and configuration:
For wall thickness below 1.5mm, single-layer heating mechanisms are usually sufficient
For thickness between 1.5-2mm with a draw ratio greater than 1, double-layer heating systems are recommended
For thickness exceeding 2mm with a draw ratio over 0.5, double-layer heating systems are advised to ensure uniform heating and product quality
Material Type and Characteristics
Different plastic raw materials possess distinct rheological properties and processing requirements that directly impact extruder selection. Common thick sheet extrusion plastics include RPVC, SPVC, PP, PE, ABS, HIPS, and PC. For example, processing PVC typically requires specialized extruders with corrosion-resistant screws and barrels, while handling engineering plastics like PC demands more powerful motors and specially designed screw configurations.
Thermal stability and melt flow index are crucial parameters for selecting appropriate temperature control systems and screw designs. Heat-sensitive materials like PVC require precise temperature control and shorter residence times, while high-viscosity materials like PC need stronger plasticizing capacity and higher heating power.
Production Requirements and Efficiency
Production volume demands are another key factor determining extruder specifications and configuration. Based on annual production requirements, you can select extruders of different levels and capacities:
For applications with multiple product specifications and low individual quantities (annual output below 60,000-80,000 units), single-station extruders are typically economical and practical
For applications with single product types and large quantities (annual output above 60,000-80,000 units), dual-station or multi-station configurations are more appropriate, significantly improving production efficiency
For large-scale continuous production, multiple extruders or complete automated production lines may be necessary, including automatic feeding, online detection, and automatic packaging systems
Space and Energy Considerations
Installation space and energy consumption are crucial factors that shouldn't be overlooked during the selection process. Large extruders typically require more production space and stronger power supply. Regarding energy efficiency, some modern extruders incorporate new energy-saving radiation systems that can save more than 30% of electricity consumption. Therefore, when selecting equipment, it's essential to evaluate energy consumption indicators and long-term operational costs, not just the initial investment.
New vs Used Equipment Selection Strategy
When working with limited budgets, considering used equipment is a viable option. Used extruders offer significant price advantages, typically only 30%-60% of new equipment prices. However, purchasing used equipment requires attention to the following aspects:
Equipment history: Understand the equipment's actual service life, maintenance records, and application background
Critical component status: Check wear conditions of key components like screws, barrels, gearboxes, and control systems
Technical compatibility: Ensure the equipment technology isn't obsolete and can integrate with existing production lines
Supplier reputation: Choose reputable used equipment suppliers and negotiate warranty periods
For applications requiring high production quality and intensive continuous operation, selecting new equipment is recommended to obtain better performance, energy efficiency, and after-sales service guarantees.
