If you work in the plastics, manufacturing, or polymer industries, you've likely heard the term "plastic compounding." But what exactly is the machine at the heart of this process? In simple terms, a plastic compounding machine is an industrial system designed to blend base polymers with various additives to create a new, customized plastic material with specific properties.
This isn't just simple mixing; it's a precise, high-heat, and high-shear process that results in a homogeneous plastic compound ready for shaping into final products. From the durable dashboards in your car to the insulated wires in your walls, compounded plastics are everywhere.
This comprehensive guide will dive deep into what a plastic compounding machine is, how it works, its different types, and why it's so crucial to modern manufacturing.
The Core Function: Why is Plastic Compounding Necessary?
Base polymers, as they are produced, often lack the desired characteristics for end-use applications. They might be too brittle, lack color, be unstable under UV light, or not be flame-resistant. Plastic compounding solves this by incorporating additives such as:
Colorants: For aesthetic appeal or color-coding.
Stabilizers: To protect against degradation from heat (during processing) and UV light (during use).
Flame Retardants: To meet safety standards in electronics and construction.
Plasticizers: To increase flexibility and durability (common in PVC).
Fillers: Like calcium carbonate or talc, to reduce cost and improve stiffness.
Reinforcements: Such as glass or carbon fibers, to dramatically enhance strength and structural integrity.
The plastic compounding machine is the engineered solution that uniformly disperses these additives into the polymer melt, ensuring every pellet of the final compound has the exact same composition.
How Does a Plastic Compounding Machine Work? A Step-by-Step Breakdown

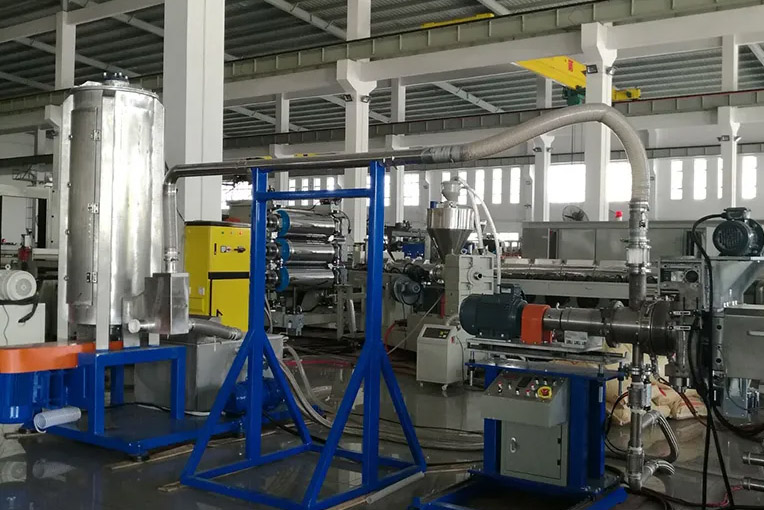

While designs vary, the fundamental process follows a similar sequence across most machines. The heart of the system is typically a twin-screw extruder.
1. Feeding (Input):
Raw materials—the base polymer (in pellet or powder form) and precise doses of additives—are fed into the extruder's barrel through one or multiple feed hoppers. Advanced systems use gravimetric or volumetric feeders for impeccable accuracy.
2. Melting and Mixing (The Core Process):
Inside the barrel, the material encounters one or two rotating screws. These screws are designed with specialized elements that:
Convey: Push the material forward.
Knead: Apply high shear to melt the polymer.
Mix: Thoroughly disperse and distribute the additives throughout the molten polymer.
External heaters on the barrel and the mechanical shear from the screws provide the necessary heat to melt the polymer, creating a viscous, dough-like mass.
3. Venting (Devolatilization):
During melting, trapped air, moisture, or volatile by-products can create defects. Many compounding lines include a venting port under vacuum. This section removes these unwanted gases and vapors, ensuring a pure, high-quality final product.
4. Discharging and Pelletizing (Output):

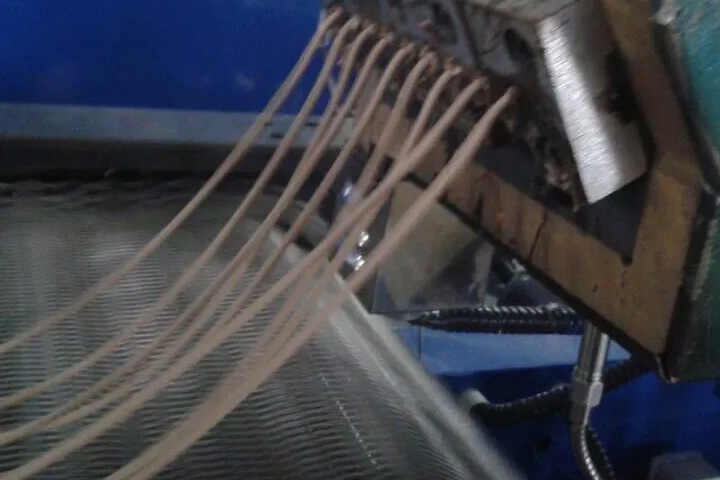

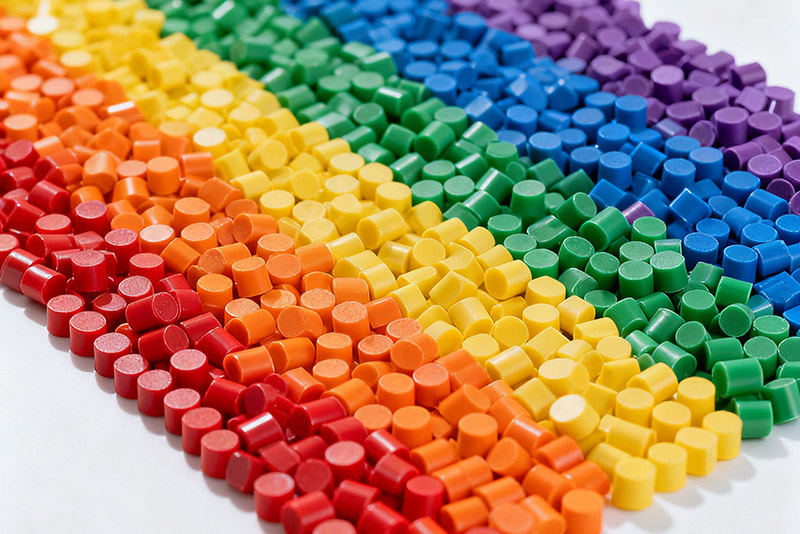

The now-homogeneous molten plastic is forced through a die plate at the end of the extruder. This die has small holes that shape the plastic into strands or a profile. Immediately after, the strands are cooled in a water bath and then fed into a pelletizer, which cuts them into uniform, free-flowing pellets. These pellets are the final compounded product, ready to be bagged and shipped to manufacturers for injection molding, extrusion, or other forming processes.
Key Types of Plastic Compounding Machines
The choice of machine depends on the material recipe and the desired properties of the compound.
Single-Screw Extruders: Simpler and more common for basic compounding and profile extrusion. They offer less intensive mixing but are cost-effective for straightforward tasks.
Twin-Screw Extruders: The industry standard for advanced compounding. The two intermeshing screws provide superior mixing, self-cleaning, and process flexibility. They can be co-rotating (both screws rotate in the same direction) for excellent distributive mixing or counter-rotating (screws rotate opposite each other) for better conveying and devolatilization.
Continuous Mixers (e.g., Buss Kneaders): These use a single screw that oscillates as it rotates, providing unique kneading action suitable for heat-sensitive materials like PVC.
For most high-performance compounding involving multiple additives and fillers, the co-rotating twin-screw extruder is the undisputed champion.
Key Applications: Where is Compounded Plastic Used?
You interact with products made from compounded plastics daily. Key industries include:
Automotive: Bumpers, dashboards, door panels, and under-the-hood components requiring heat and chemical resistance.
Construction: Pipes, window profiles, wire and cable insulation, and siding.
Packaging: High-clarity films, barrier layers for food packaging, and durable containers.
Consumer Goods: Appliance housings, power tool bodies, and toys.
Electronics & Electrical: Connectors, circuit breakers, and housings that require flame retardancy.
Choosing the Right Machine: A Brief Buyer's Consideration
Selecting a plastic compounding machine is a significant investment. Key factors to consider include:
Material Formulation: What polymers and additives are you using? Are they abrasive or heat-sensitive?
Throughput Requirements: How much material do you need to produce per hour?
Mixing Intensity: How difficult is it to disperse your additives? This often dictates the need for a twin-screw extruder.
Downstream Equipment: Ensure your pelletizer, dryer, and cooling systems are compatible with your extruder's output.
