If you're in the manufacturing, packaging, or construction industries, you've likely encountered polypropylene (PP) or polyethylene (PE) hollow profile sheets. These lightweight, strong, and versatile panels are everywhere. But have you ever wondered how they are made? The heart of their production lies in a sophisticated piece of machinery: the PP PE hollow profile sheet extruder.
In this article, we’ll dive deep into what this extruder is, unravel the science behind how it works, and explore the vast applications of the sheets it produces.
What is a PP PE Hollow Profile Sheet Extruder?
A PP PE hollow profile sheet extruder is a industrial machine designed specifically to continuously produce hollow, multi-layer plastic sheets from polypropylene (PP) or polyethylene (PE) resins. The term "hollow profile" refers to the sheet's internal structure, which consists of a series of parallel, fluted channels or chambers running through its length.
Think of it like a high-tech, industrial-grade pasta maker. Instead of dough, it uses plastic pellets, and instead of creating spaghetti, it produces large, flat, and rigid panels with a honeycomb-like internal structure.

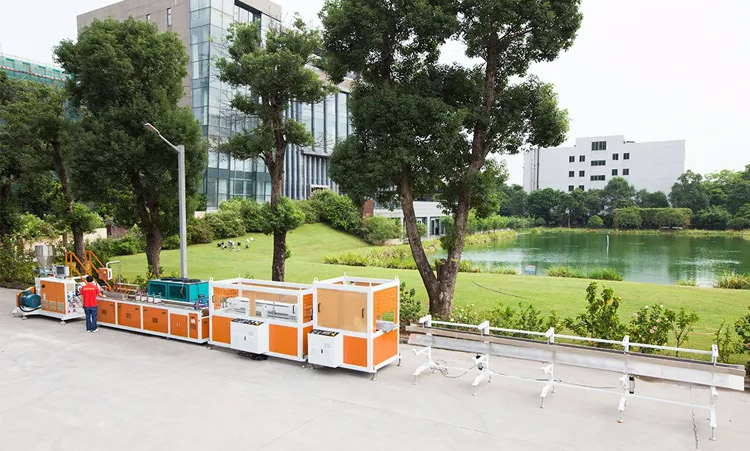

The key components of a complete extrusion line include:
Extruder: The main machine itself, containing the screw and barrel.
Die Head: A specialized tool that shapes the molten plastic into the specific hollow profile.
Calibration & Cooling Unit: A vacuum sizing tank that precisely calibrates the sheet dimensions and rapidly cools it to set its shape.
Haul-off/Puller: A set of tracks that gently pull the cooled sheet from the die at a consistent speed.
Cut-off Saw: An automatic saw that cuts the continuous sheet into pre-set lengths.
How Does the Hollow Profile Sheet Extrusion Process Work?
The process is a continuous, marvel of engineering precision. Here’s a step-by-step breakdown:
Step 1: Raw Material Feeding & Melting
The process begins with PP or PE plastic resin pellets, often mixed with colorants or additives (like UV stabilizers for outdoor use). These pellets are fed from a hopper into the extruder barrel. Inside the barrel, a rotating, precisely engineered screw transports the pellets forward.
As the pellets move, they are subjected to intense heat from external electric heaters and immense internal shear friction from the screw. This combination gradually melts the solid pellets into a uniform, viscous, molten plastic mass.
Step 2: Filtration and Homogenization
Before reaching the die, the molten plastic is forced through a screen changer and breaker plate. This assembly filters out any unmelted particles or contaminants, ensuring a pure and consistent melt. It also helps to build up the necessary pressure for the next stage.
Step 3: Shaping at the Die Head
This is where the magic happens. The pressurized, molten plastic is forced through a specially designed flat die. This die is engineered to distribute the melt evenly into the precise, complex shape of the hollow profile. As the plastic exits the die, it takes on its final form—a continuous sheet with multiple, parallel hollow chambers.
Step 4: Calibration and Cooling
The newly formed, still-molten sheet is too soft to hold its shape. It immediately enters a vacuum calibration unit. Here, the sheet is passed through precisely sized calibrators while a vacuum is applied to the outside. This suction pulls the soft plastic firmly against the calibrators, ensuring perfect dimensional accuracy and a smooth surface finish. Simultaneously, water cooling sprays rapidly cool and solidify the plastic, locking in the hollow profile structure.
Step 5: Pulling and Cutting
The now-solid sheet is pulled through the line by the haul-off unit. This device provides a steady, consistent pulling force, which is critical for maintaining a uniform sheet thickness and preventing deformation. Finally, the continuous sheet reaches the cut-off saw, which automatically cuts it into the required panel lengths for packaging and shipment.
Key Advantages of Hollow Profile Sheets Produced by This Method
The extrusion process creates sheets with exceptional properties:
High Strength-to-Weight Ratio: The hollow structure provides remarkable rigidity and impact resistance while being very lightweight, reducing transportation and handling costs.
Excellent Thermal Insulation: The air trapped within the hollow chambers acts as a superb insulator, making these sheets ideal for applications requiring temperature control.
Chemical and Water Resistance: Both PP and PE are inherently resistant to moisture, chemicals, and corrosion.
Cost-Effectiveness: The process is highly efficient and automated, and the hollow design uses less raw material than a solid sheet of equivalent thickness, lowering production costs.
Wide-Ranging Applications of PP PE Hollow Profile Sheets
Thanks to their unique properties, these sheets are used across countless industries:
Advertising & Signage: Widely used for durable, lightweight, and printable substrates for billboards, exhibition displays, signage, and lightboxes.
Packaging: An eco-friendly and robust material for reusable packaging, crates, boxes, and protective inserts. Its hollow structure is perfect for fruit and vegetable trays that require ventilation.
Construction & Building: Used for temporary protection panels (e.g., window and door guards), interior partitions, false ceilings, and roofing underlays. Their insulating properties are a key benefit.
Agriculture: Employed as greenhouse panels, root-control boards, and for creating lightweight, insulated structures.
DIY & Furniture: A popular material for making shelves, closet organizers, and other custom furniture projects due to its ease of cutting and assembling.
