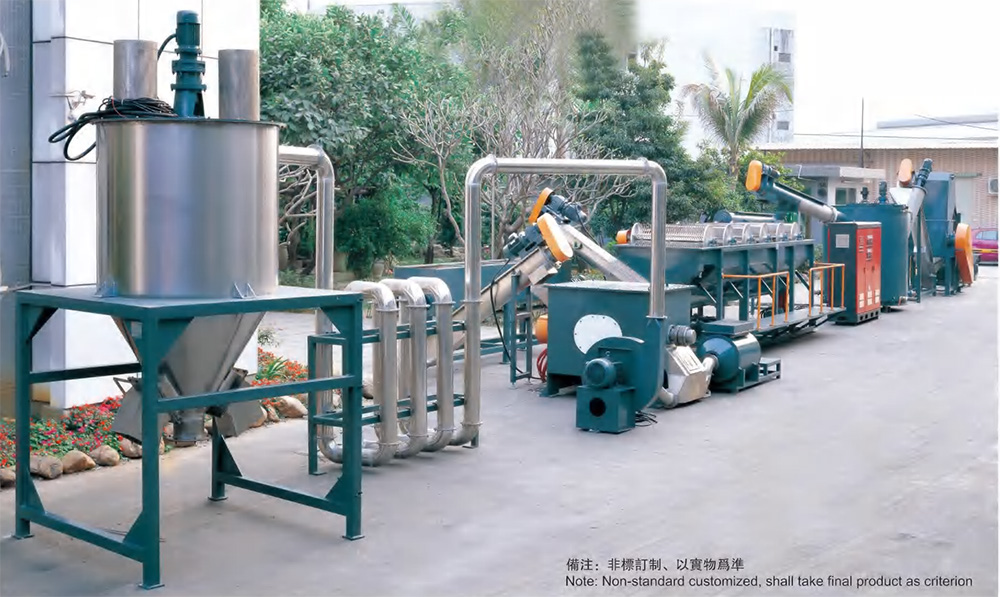

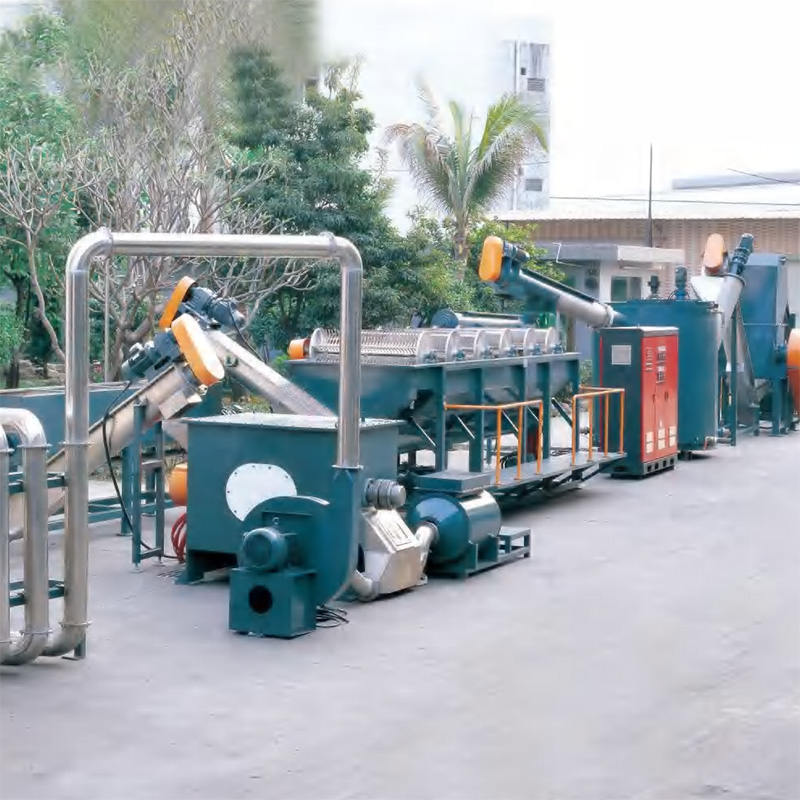

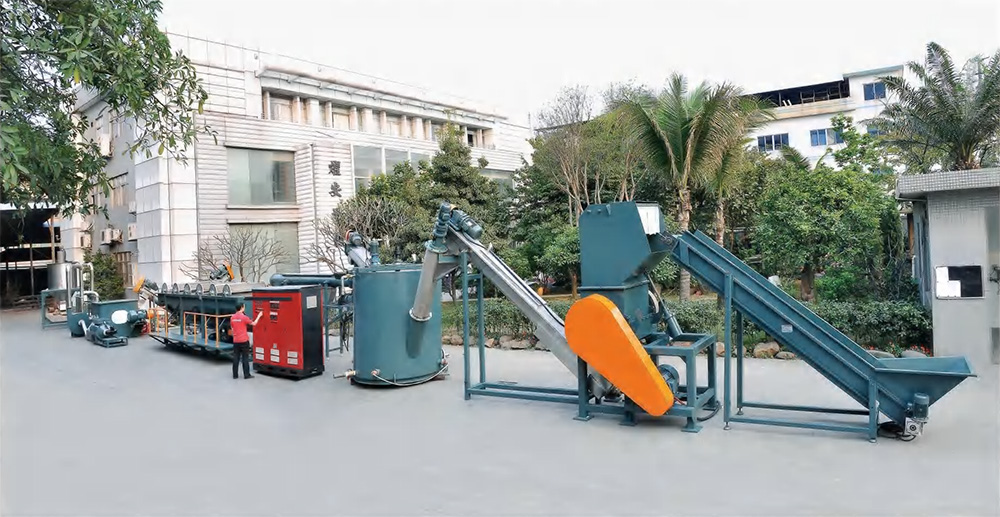

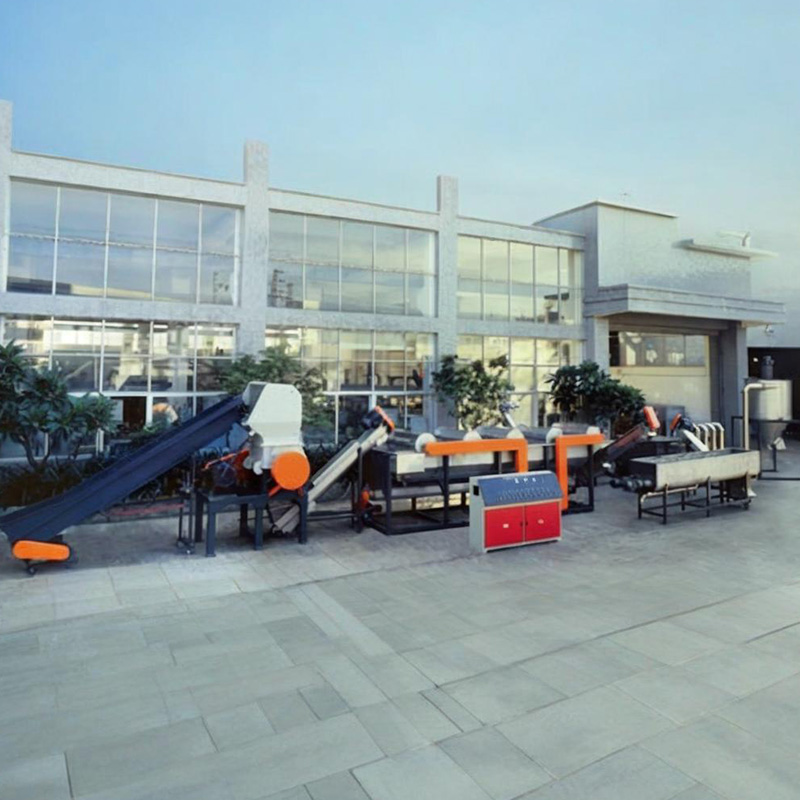

YAOAN Plastic Film Crushing, Washing, and Drying Production Line is a state-of-the-art system designed for recycling various types of plastic films and bags, including PE/PP industrial films, city garbage films, PP woven bags, raffia jumbo bags, waste agricultural films, soft drip irrigation pipes, and industrial/supermarket packing films. This automatic film washing production line ensures that the washed plastic flakes are clean, dry, and of high quality, making them suitable for reuse in the production of new plastic films or other plastic products.
High Efficiency: Processes 300 to 2000 kg/hr, depending on the model.
Automatic Control: Compact and automated process for high production efficiency.
Impurity Removal: Effectively separates mud, sand, and other impurities.
Pre-Treatment System: Includes pre-washer and label processing for improved end-product quality.
Centrifugal Dewatering and Squeezing: Ensures low moisture content in the final product.
Easy Maintenance: Low energy consumption and long lifetime.
Versatile Applications: Suitable for a wide range of plastic films and bags.
| Model | Capacity (kg/hr) | Power Installed (Kw) | Water Consumption (ton/hr) | Manpower |
|---|---|---|---|---|
| AFW300 | 300-400 | 120 | 0.5 | 3 |
| AFW500 | 500-600 | 200 | 1.2 | 3 |
| AFW1000 | 800-1000 | 250 | 3 | 4 |
| AFW1500 | 1300-1500 | 325 | 4 | 4 |
| AFW2000 | 1800-2000 | 415 | 4 | 4 |
Belt Conveyor:
Transports raw materials into the system.
Options for light or heavy-duty models.
Can include a metal detector for impurity detection.
Shredder:
Pre-processes large materials like film bales, plastic drums, or tanks.
For soft films, shredding eliminates the need for secondary crushing.

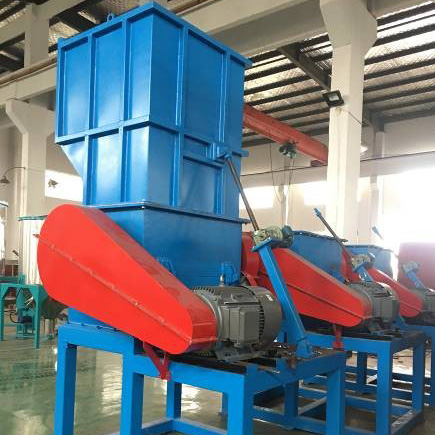

Crusher:
Crushes materials into smaller sizes for efficient washing.
Operates with water to clean materials and cool blades during crushing.
Friction Washer:
Washes plastic at high speed to remove contaminants, dirt, and grease.
Prepares materials for further cleaning in the floating tank.

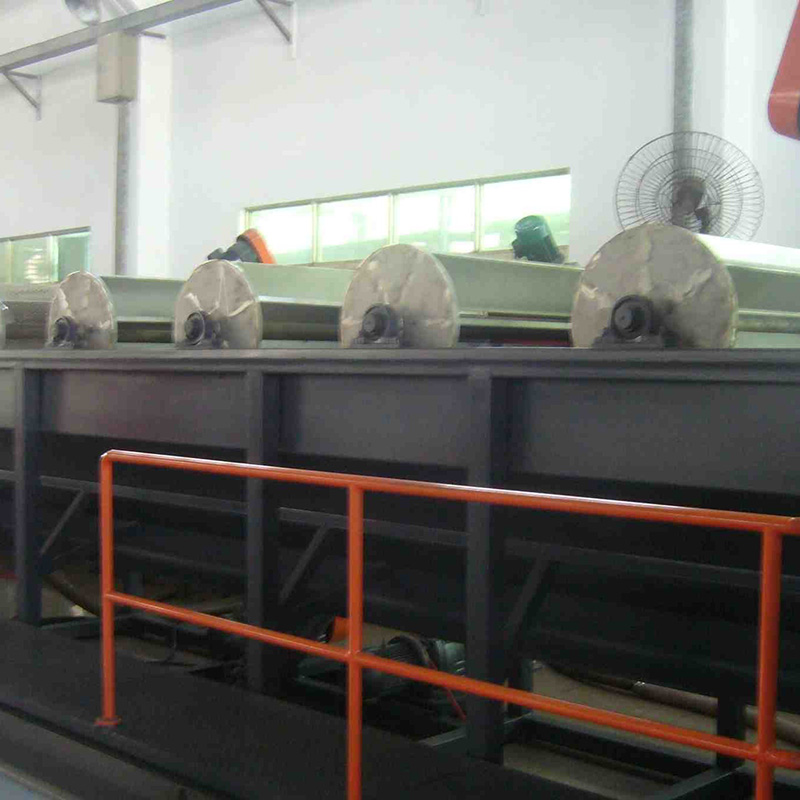

Floating Tank:
Separates sediments and metals from the plastic.
Features washing wheels with inverter-controlled speeds.
Constructed from stainless steel for durability.
Centrifugal Dryer:
Horizontal design for efficient drying of plastic films and flakes.
Includes a self-washing grid mesh for low energy consumption.
Large Capacity Horizontal Dryer:
European design for super-dry plastic films and flakes.
Suitable for large-capacity washing lines.
Hot Air Pipeline Heating:
Stainless steel pipeline for further drying.
Reduces moisture content in the final product.
Squeezing Machine:
Uses screw squeezing to semi-melt materials, improving pellet quality.
Reduces moisture content to 1-3%.
Belt Conveyor: Feeds raw materials into the system.
Shredder: Pre-processes large materials.
Crusher: Crushes materials into smaller pieces.
Friction Washer: Removes dirt and grease.
Floating Tank: Separates sediments and metals.
Centrifugal Dryer: Dries plastic flakes.
Horizontal Dryer: Further reduces moisture content.
Hot Air Pipeline: Ensures thorough drying.
Squeezing Machine: Prepares materials for pelletizing.
Reused in Film Production: Mixed with virgin materials to produce new plastic films.
Pelletizing: Converted into high-quality pellets for various plastic products.
Other Uses: Packaging materials, industrial products, and more.
High-Quality Output: Produces clean, dry, and reusable plastic flakes.
Efficient Impurity Removal: Effectively separates mud, sand, and other contaminants.
Customizable: Can be tailored to meet specific production needs.
Eco-Friendly: Promotes sustainable recycling of plastic waste.
Low Operational Costs: Energy-efficient and easy to maintain.
Advanced Technology: Combines shredding, washing, and drying for superior results.
Reliable Performance: Built with high-quality materials (e.g., stainless steel) for durability.
Flexible Capacity: Available in various capacities to suit different production scales.
Comprehensive Support: Includes installation, training, and after-sales service.
For more information or to discuss your specific requirements, feel free to contact us. We look forward to helping you achieve your plastic recycling goals!
Yes, we supply detailed user manual for your reference. PLS read it carefully for guide. If there is still problem which could not be solved, PLS contact us, we are ready to help you anytime.
We supply perfect overseas service. We shall send engineers to overseas for machine installation and commissioning and test production guide, and also training to the workers of the buyer. And we are ready to give technical support anytime.
he guarantee period of our machine is 12 months after the machine is installed well in buyer's factory;
Painted the machine with anti-corrosion oil, and then covered with plastic film, and then packed into wooden case or fixed onto wooden pallet as per clients' requirements, or shall be loaded into container with film packing. After fixed all machines, we will use drying agent to keep container inside dry.
