CA 3D Printer Filament Extrusion Line

CA 3D Printer Filament Extrusion Line

function: make plastic filaments for 3D printer according to strick requirement of diameter tolerance.

Including single color 3D printer use filament extrusion line and muti-color 3D printer use filament extrusion line

The filament machine is suitable for different raw material: ABS, PLA, PETG, PC

The machines are designed according to high precise, high stablity, fast speed output. The tolerance of filament diameter is less than more or less 0.035mm.

CA 3D Printer Filament Extrusion Line is a specialized production system designed to manufacture high-precision plastic filaments for 3D printing applications. These filaments must meet strict diameter tolerance requirements (typically ±0.035mm) to ensure optimal performance in 3D printers. The extrusion line is capable of processing various thermoplastic materials, including ABS (Acrylonitrile Butadiene Styrene), PLA (Polylactic Acid), PETG (Polyethylene Terephthalate Glycol), and PC (Polycarbonate). It is available in single-color and multi-color configurations to meet diverse production needs. Below is a detailed introduction to the machine, its features, and its components:

Key Features of the PETG 3D Printer Filament Extrusion Line

1. High Precision:

• Ensures consistent filament diameter with a tolerance of ±0.035mm.

• Equipped with advanced diameter control systems for real-time monitoring and adjustment.

2. High Stability:

• Designed for stable and continuous production, minimizing downtime and material waste.

• Robust construction ensures long-term reliability.

3. Fast Speed Output:

• High-speed extrusion and cooling systems enable efficient production.

• Suitable for large-scale manufacturing of 3D printer filaments.

4. Material Versatility:

• Compatible with a wide range of thermoplastic materials, including ABS, PLA, PETG, and PC.

• Can be customized for other specialty materials.

5. Single-Color and Multi-Color Options:

• Single-Color Line: Produces filaments in a single color.

• Multi-Color Line: Produces filaments with multiple colors or gradients.

6. Automated Control System:

• Integrated PLC (Programmable Logic Controller) and HMI (Human-Machine Interface) for precise control of the extrusion process.

• Real-time monitoring of key parameters such as temperature, speed, and diameter.

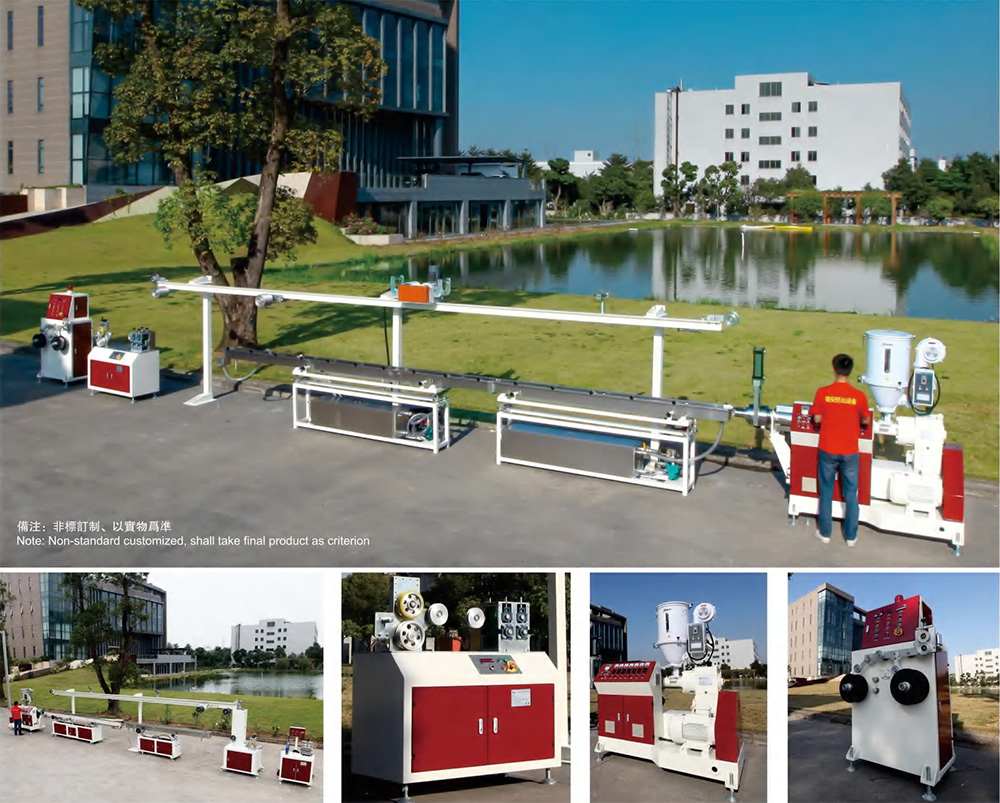

ABS Filament Extrusion Equipment Components and Process

1. Extruder:

• The raw material (plastic pellets) is fed into the extruder, where it is melted and homogenized.

• The extruder screw pushes the molten plastic through the die head.

2. Die Head:

• The die head shapes the molten plastic into a continuous filament of the desired diameter.

• The die design ensures uniform material flow and precise diameter control.

3. Cooling System:

• The extruded filament passes through a cooling system (usually water or air cooling) to solidify the material.

• Cooling ensures the filament retains its shape and dimensional accuracy.

4. Diameter Control System:

• A laser or ultrasonic diameter measurement system monitors the filament diameter in real time.

• Feedback control adjusts the extrusion speed or haul-off speed to maintain the desired diameter tolerance.

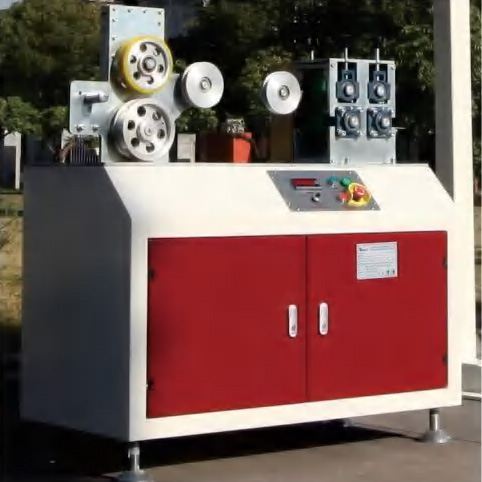

5. Haul-Off Unit:

• A haul-off machine pulls the cooled filament at a controlled speed to maintain consistency.

6. Winding Unit:

• The finished filament is wound onto spools using an automatic winding machine.

• The winding tension is carefully controlled to prevent deformation or breakage.

7. Optional Multi-Color System:

• For multi-color filaments, additional extruders or color dosing systems are integrated to blend colors during the extrusion process.

Applications of 3D PLA filament extrusion line

1. 3D Printing:

• Produces high-quality filaments for FDM (Fused Deposition Modeling) 3D printers.

2. Prototyping:

• Supplies filaments for rapid prototyping in industries such as automotive, aerospace, and consumer goods.

3. Education and Hobbyist Use:

• Provides filaments for educational institutions and hobbyists.

4. Custom Filaments:

• Enables the production of custom-colored or specialty filaments for niche markets.

Advantages of the 3D PC Filament Extrusion Line

• High Precision: Ensures consistent filament diameter for optimal 3D printing performance.

• Material Flexibility: Compatible with a wide range of thermoplastic materials.

• Automation: Reduces labor costs and ensures consistent product quality.

• Scalability: Suitable for both small-scale and large-scale production.

• Customization: Can be tailored to produce single-color or multi-color filaments.

Why Choose This ABS Filament Extrusion Equipment?

• Strict Diameter Tolerance: Meets the high precision requirements of 3D printer filaments.

• High Stability and Speed: Ensures efficient and reliable production.

• Versatility: Supports a wide range of materials and colors.

• Advanced Control Systems: Provides real-time monitoring and adjustment for consistent quality.

Machine Models and Configurations

• Single-Color Filament Extrusion Line:

• Designed for standard single-color filament production.

• Suitable for ABS, PLA, PETG, and PC materials.

• Multi-Color Filament Extrusion Line:

• Equipped with additional extruders or color dosing systems for multi-color or gradient filaments.

• Ideal for producing decorative or specialty filaments.

The PETG 3D printer filament extrusion line is a state-of-the-art solution for manufacturing high-precision filaments for 3D printing. Its advanced technology, precision, and versatility make it an essential tool for filament producers and 3D printing enthusiasts.
