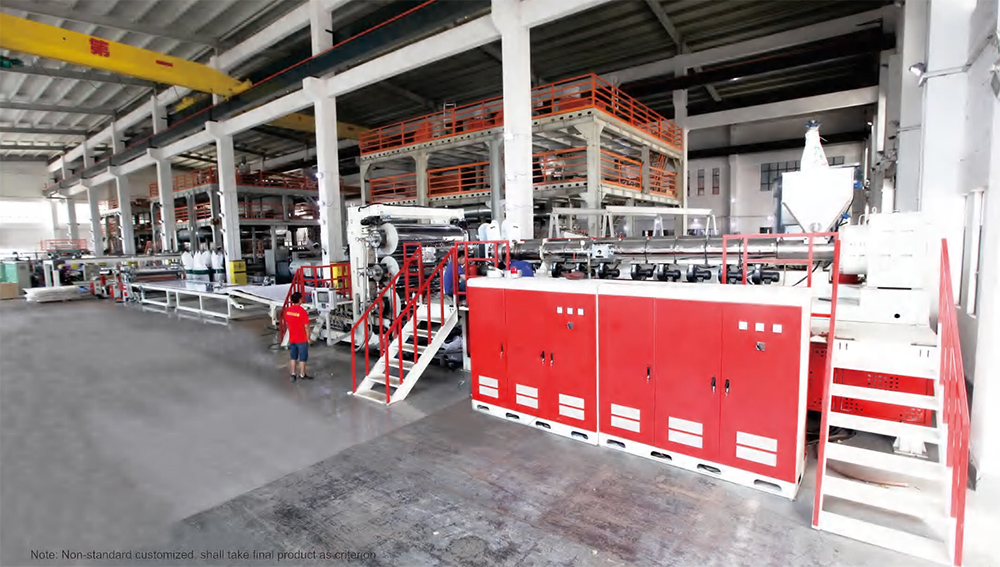

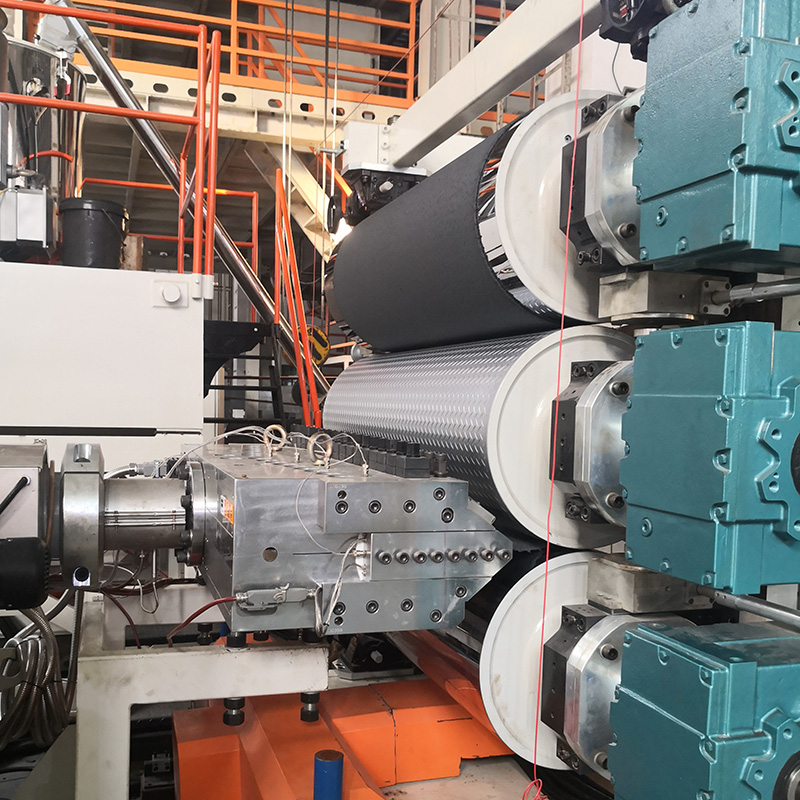

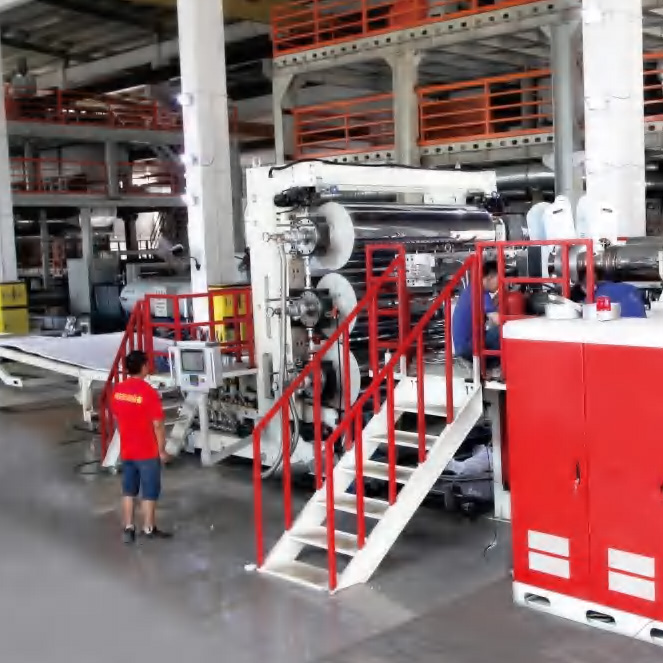

Plastic Foam Board Extrusion Line

It is the application of Plastic chemical foam technology. The Cheical agent is AC foam agent.

We have PVC FREE FOAM BOARD EXTRUSION LINE, PVC CRUST (skinning) foam board extrusion line, PP foam board machine, EVA foam board machine, PE FOAM BOARD EXTRUDER.

PVC Skinning Foam Board Extrusion Lines: Overview and Key Considerations

1.


2. Materials and Applications:

• PVC-Free Foam Board: Utilizes alternative polymers (e.g., PE, bioplastics) to avoid environmental concerns. Applications include eco-friendly packaging and construction materials.

• PVC Crust (Skinning) Foam Board: Features a solid outer layer (skin) over a foamed core, ideal for surfaces requiring durability, such as signage or decorative panels.

• PP Foam Board: Polypropylene foam, known for rigidity and moisture resistance, used in automotive components, packaging, and industrial applications.

• EVA Foam Board: Soft, flexible foam used in footwear, sports gear, and padding due to its shock-absorbing properties.

•


3. Foaming Agent (AC Agent):

• Azodicarbonamide (AC): A chemical blowing agent that decomposes at high temperatures, releasing gases (N₂, CO, CO₂) to create a cellular foam structure. Requires precise temperature control during extrusion.

•


4. Extrusion Process:

• General Steps: Polymer melting → Mixing with AC agent → Extrusion through a die → Foam expansion upon pressure drop.

• Skinning Technology: Achieved via co-extrusion or controlled cooling to form a solid outer layer. May involve multi-layer dies or post-die calibrators for surface hardening.

•


5. PVC Crust Foam Board Extruder Considerations:

• Screw configuration (e.g., shear rates for mixing AC agent).

• Temperature zones tailored to polymer melting points (EVA: ~80-100°C; PP: ~160-180°C).

• Cooling systems (air or water baths) to stabilize foam structure.

•


• Material-Specific Design:

• Output Customization: Adjustable parameters (screw speed, AC dosage) to control board density (typically 0.2–0.8 g/cm³) and thickness (1–20 mm).

6. Quality and Safety:

• Uniform Cell Structure: Critical for mechanical properties; influenced by AC dispersion and extrusion stability.

• Ventilation: Essential to manage gases released during AC decomposition (e.g., ammonia traces).

•


7. Post-Processing:

• Cutting, laminating, or surface treatment (e.g., printing for PVC crust boards).

• Quality checks for density, thickness, and surface integrity.

8. Market Differentiation:

• Eco-Friendly Lines: PVC-free machines cater to sustainability trends.

• High-Performance Foams: PP for structural uses; EVA for comfort applications.

In order to meet environmental protection requirements, YAOAN developed a special PP foam board extrusion equipment, which can make waste PE/PP/PVC material compound with mineral powder,Wood powder, fiber，calcium carbonate and other fillers into a kind of building templates products,under extrusion process.This new product can instead of steel and bamboo plates, can be drilled, nailed,sawed,carved and processed like wooden plates.

The advantages: high impact resistance, corrosionresistance,heat resistance, non-toxic,odorless smooth surface appearance,low density,light, weight,easily processed, dimensional stability, rigid, low cost easy for welding, and repeated use. Also can be filled, flame retardant, modified,embossed, frosted, and recycled.

Applications: circuit board and metal  surfacre treatment tank circuit board processing equipment, waste gas exhaust systems equipment for plant, wastewater and other environmentaprotectionsystem equipment,the semiconductor industry related equipments.

There are single screw and twin screw extruders for optional. Specialized PVC free foam board extrusion line also can be made according to the needs of customer.
