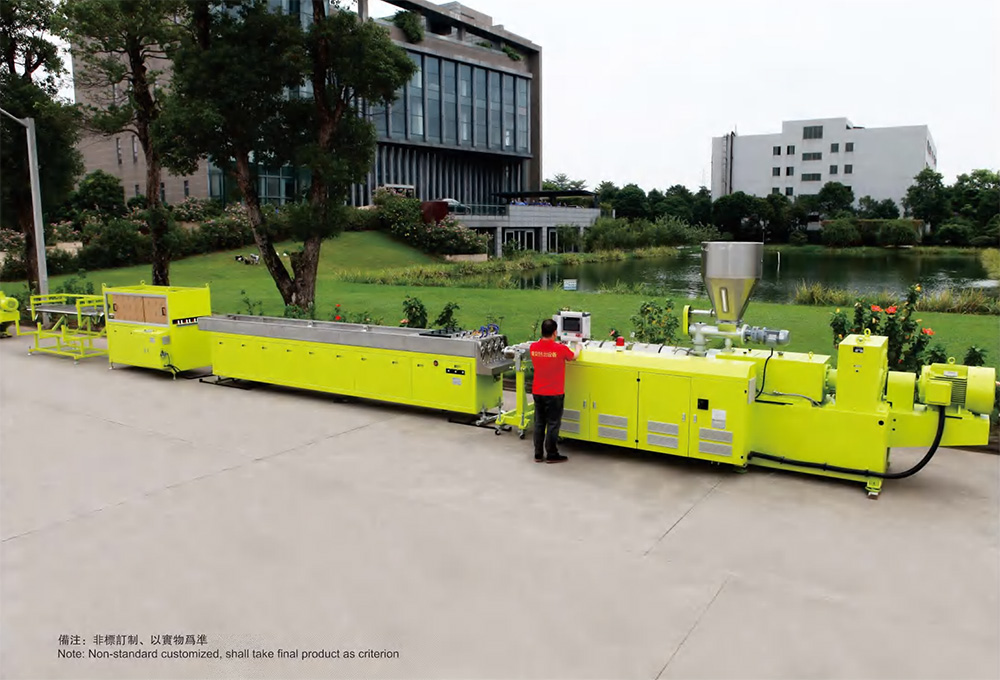

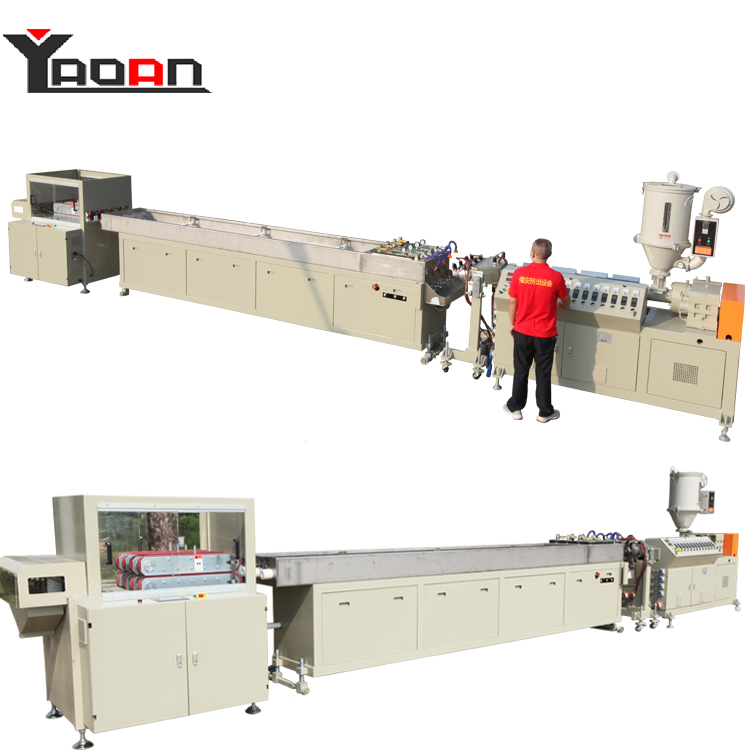

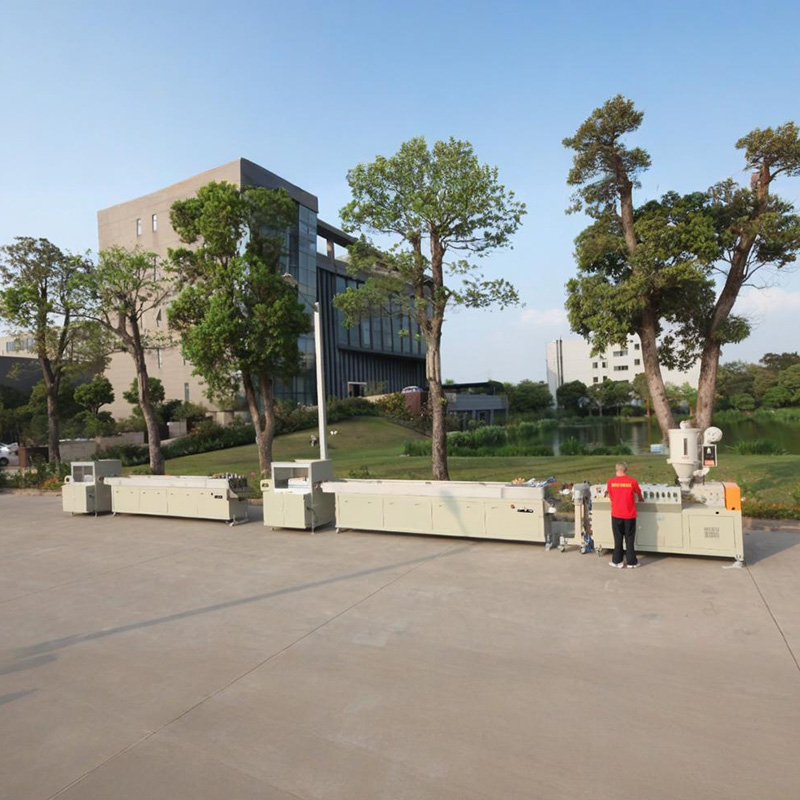

Four-cavity Pipe Production Line

YAOAN's  Four-cavity Pipe Production Line

we have 4 cavity PVC plastic pipe production line and 4 Cavity PP PE plastic pipe production line

Four pipe production machine's brief introduction:

1. suitable pipe diameter range:16-32mm;

2. Maximum line speed:12-15m/min(up to formula);

3. Maximum extrusion capacity:350-400kg/h;

4.Equipment configuration:

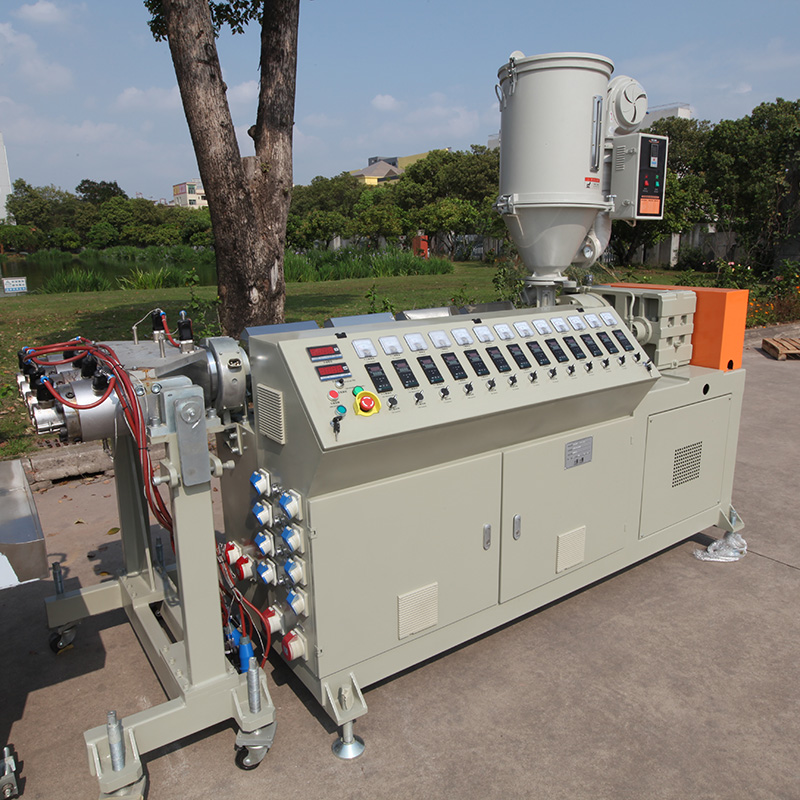

(1)80 conical twin-screw extruder;

(2)four cavity style extrusion die head;

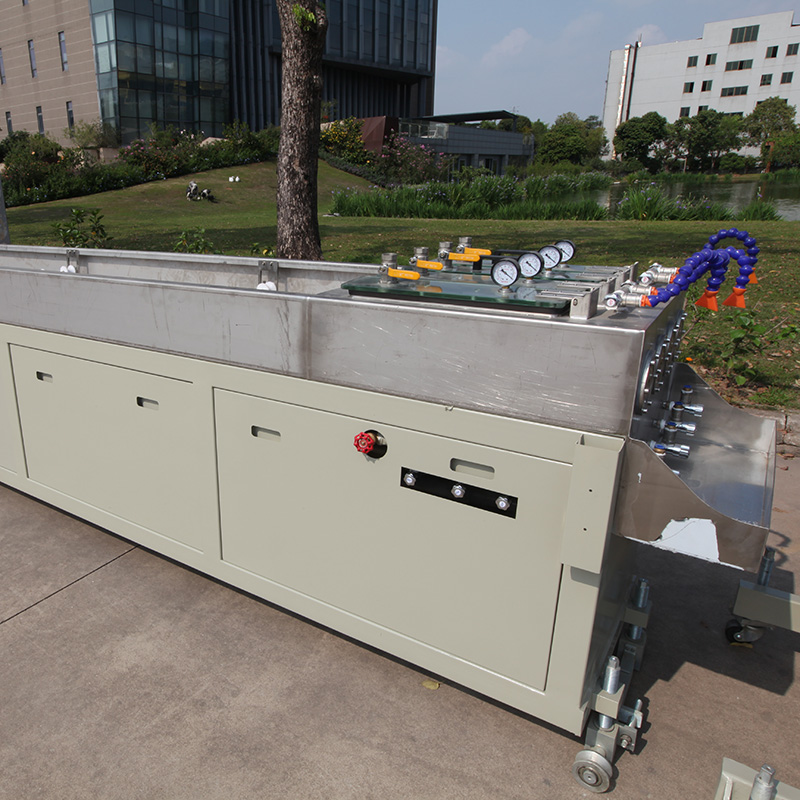

(3)Fourtube style vacuum box;

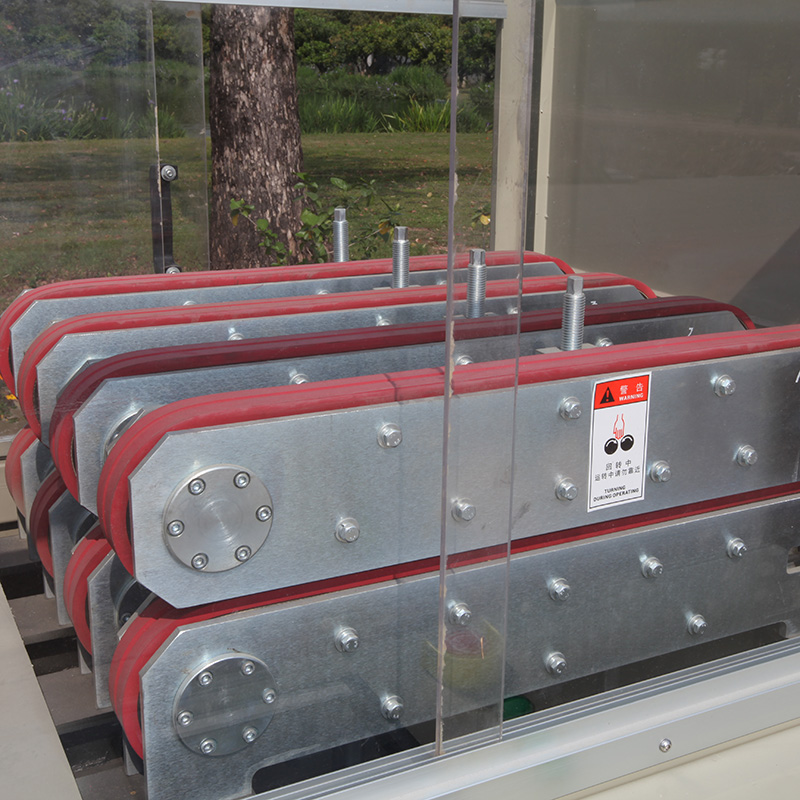

(4)Four station style haul-off andcutter;

(5) Four station style stack table

Equipment advantages:

1.80 conic twin screw extruder with special designedscrews according to the different formulas, resulting inhigher output, a better material plasticization effect, and ahigher pipe quality;

2.The flow channel of die head adopts a design of one flowdividing into two flows and two into four; it ensures the pressurein the flow channel more balanced;

3. The vacuum tank is of four workstation design, each work station with anindependent vacuum adiustment function,avoiding mutual influence among workstations;

4.Each workstation of the four station haul-off and cutting machine is independently controlled, ensuring pipe sizesat each station reach quality standards.

Every piece of four pipe production machine manufactured by Yaoan undergoes a rigorous pre-sales communication process to fully understand the specific needs of our customers. Our professional technical team then conducts research and design, ensuring strict control over every production process and procedure. After thorough debugging and testing by relevant departments, the four pipe production machine is delivered to customers with high-standard quality, upholding the manufacturing standards of Yaoan.
