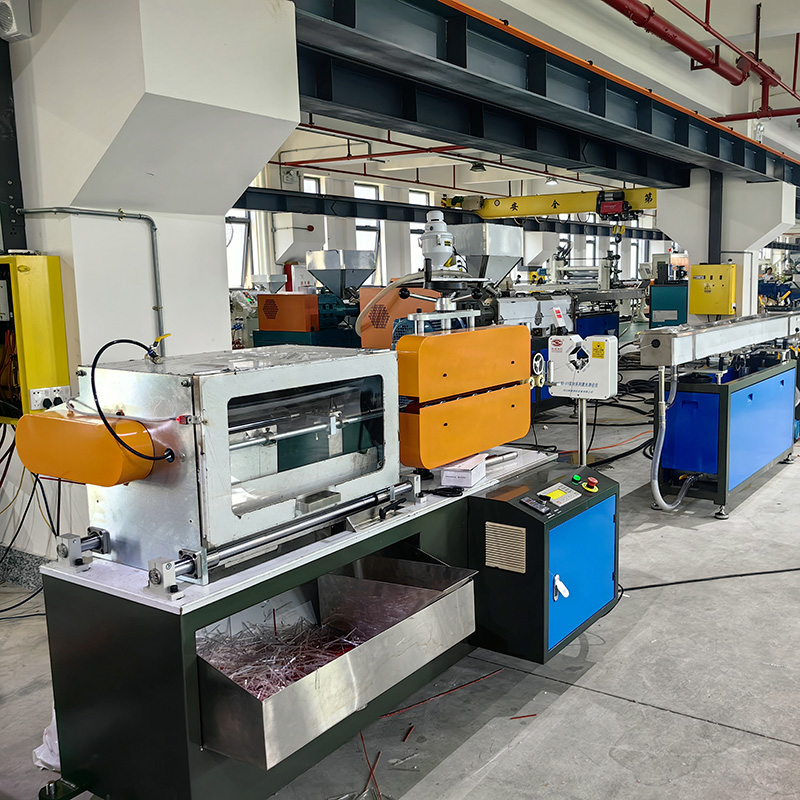

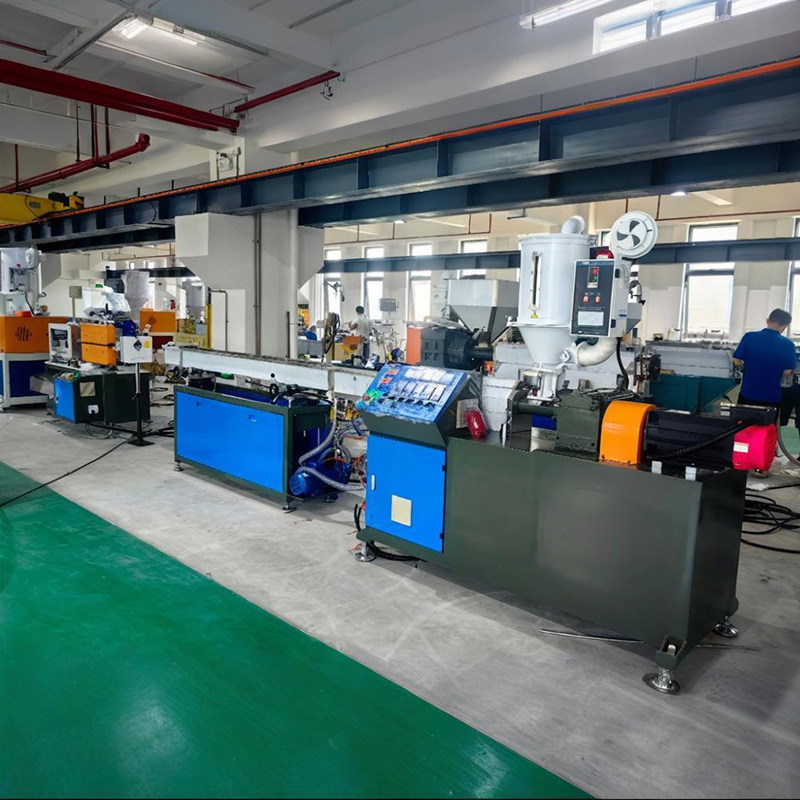

PETG medical pipe extrusion machine

PETG Medical Pipe Extrusion Machine is a specialized production line designed for manufacturing high-precision medical-grade pipes, such as saliva jacket pipes and caps for medical injection needles. Made from PETG (Polyethylene Terephthalate Glycol-modified), these pipes are known for their clarity, chemical resistance, and biocompatibility, making them ideal for medical applications. Below is a detailed overview of the machine's features, configurations, and advantages:

PETG Dentist Pipe Extrusion Machine Overview:

• Purpose: Production of medical-grade pipes for applications like saliva jacket pipes and medical injection needle caps.

• Material: PETG (Polyethylene Terephthalate Glycol-modified).

• Key Features: High precision, excellent surface finish, and compliance with medical standards.

Saliva Suction Pipe Machine Configurations:

1. Single Screw Extruder:

• Melts and processes PETG material.

• Equipped with a hopper dryer to remove moisture from the raw material, ensuring optimal clarity and quality.

• Vacuum Autoloader: Automatically feeds raw material into the extruder, ensuring consistent production.

2. Die Head and Copper Size Sleeve:

• Shapes the molten PETG into a pipe.

• The copper size sleeve ensures precise control over the pipe's outer diameter and wall thickness.

3. Vacuum Calibration Tank with Circular Water Tank:

• Vacuum Calibration Tank: Maintains the pipe's shape and dimensions during cooling.

• Circular Water Tank: Rapidly cools the pipe to solidify it while maintaining its transparency and surface finish.

4. On-Line Diameter Monitor:

• Continuously monitors the pipe's diameter to ensure consistency and precision.

5. Servo-Driven Puller:

• Pulls the pipe through the production line at a controlled speed, ensuring smooth operation and uniform dimensions.

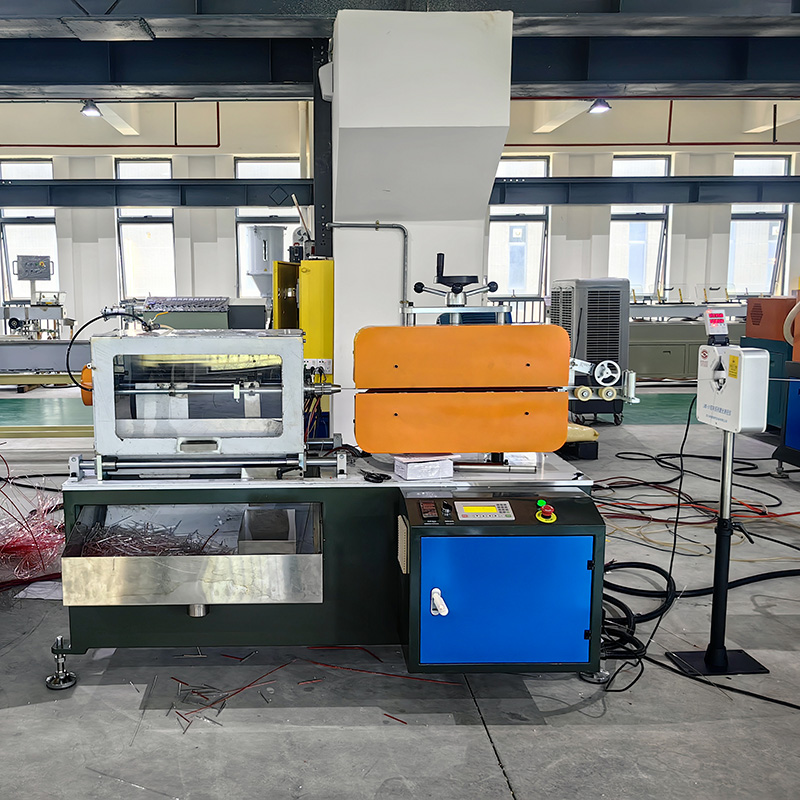

6. Automatic Cutter:

• Cuts the pipe to the desired length with high precision.

Advantages of PETG Medical Pipes:

1. High Clarity: PETG pipes are transparent, making them ideal for medical applications where visibility is important.

2. Chemical Resistance: Resistant to chemicals and disinfectants, ensuring durability in medical environments.

3. Biocompatibility: Safe for use in medical applications, as PETG is non-toxic and compliant with medical standards.

4. Precision: The machine ensures precise dimensions and consistent quality, critical for medical components.

5. Smooth Surface Finish: The pipes have a shiny, smooth surface, reducing the risk of contamination and making them easy to clean.

PETG Pipe Extruder Applications:

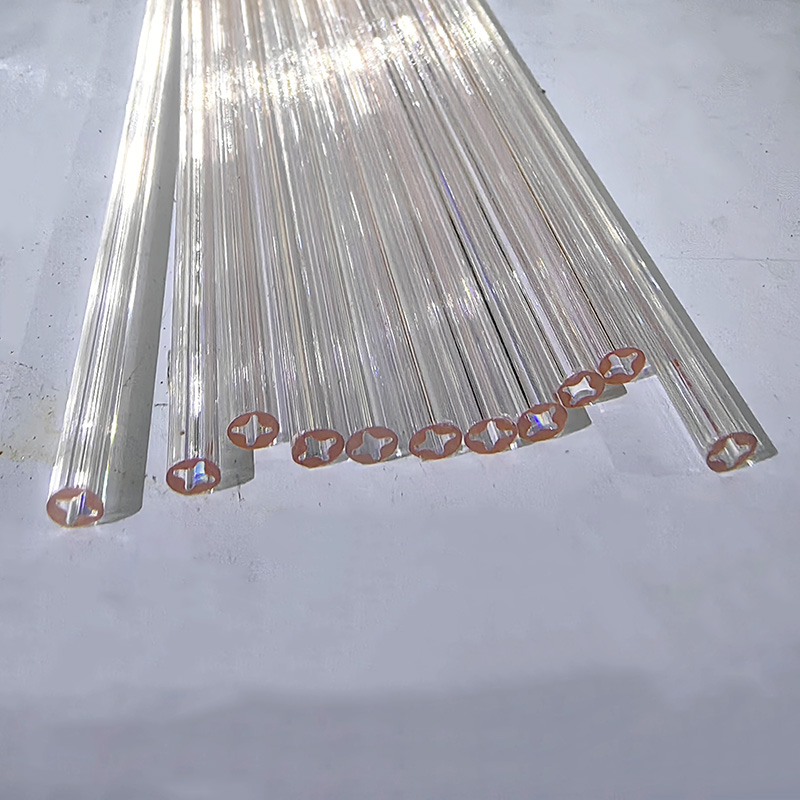

1. Saliva Jacket Pipes:

• Used in dental and medical devices for saliva management.

2. Medical Injection Needle Caps:

• Used as protective caps for medical injection needles.

3. Other Medical Tubing:

• Suitable for various medical tubing applications requiring transparency, chemical resistance, and biocompatibility.

Conclusion:

The PETG Medical Pipe Extrusion Machine is a state-of-the-art solution for producing high-quality, medical-grade pipes with exceptional precision and surface finish. Its advanced configurations, such as the vacuum calibration tank, on-line diameter monitor, and servo-driven puller, ensure consistent and reliable production. PETG pipes are ideal for medical applications due to their clarity, chemical resistance, and biocompatibility. Whether for saliva jacket pipes, needle caps, or other medical tubing, this PETG dentist pipe extrusion machine delivers outstanding performance and meets the stringent requirements of the medical industry.
