Steel spring reinforced PVC hose extrusion machine

The YAOAN Steel Spring Reinforced PVC Hose Extrusion Machine is a highly efficient and integrated production line designed for manufacturing steel spring-reinforced PVC hoses. This steel spring PVC hose machine combines the processes of steel spring forming and PVC coating into a continuous operation, ensuring high productivity and consistent quality. Below is a detailed breakdown of the machine's components, process, and applications:

Key Features and Process Overview of Steel Spring Reinforced PVC Pipe Machine:

1. Raw Materials:

• Steel Wire: Used for forming the steel spring reinforcement.

• Flexible PVC Granules/Powder: Used for coating the steel spring to create the flexible PVC hose.

2. Machine Process Flow:

• Steel Spring Forming: The steel wire is fed into an automatic steel spring forming machine, which shapes the wire into a continuous steel spring.

• Coating with PVC: The formed steel spring is then fed into a cross die head, where it is coated with molten PVC plastic. This process ensures that the steel spring is fully encapsulated within the PVC material.

• Cooling: The coated PVC hose passes through a water cooling tank, where it is rapidly cooled to solidify the PVC coating.

• Haul-Off: The cooled hose is pulled through the line by a haul-off unit, ensuring consistent tension and smooth operation.

• Winding: Finally, the finished steel spring-reinforced PVC hose is wound onto a coil for storage or transport.

3.

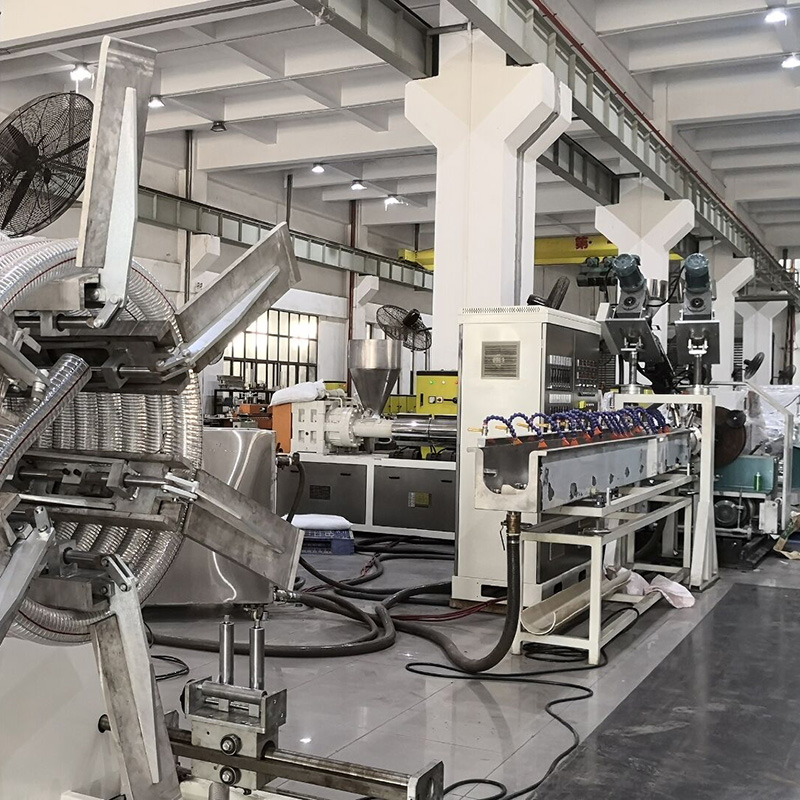

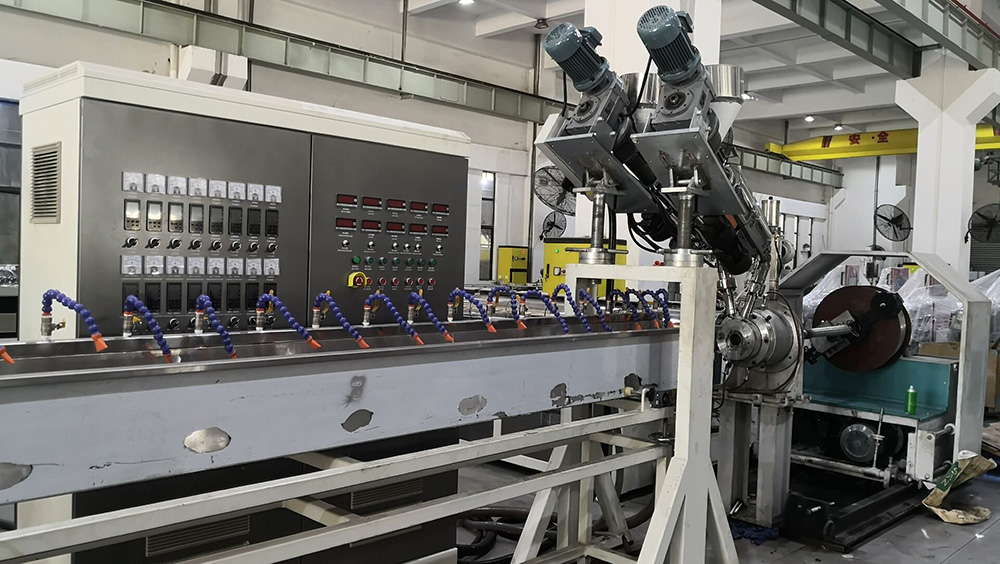

4. Steel Spring Reinforced PVC Pipe Machine Configurations:

5.

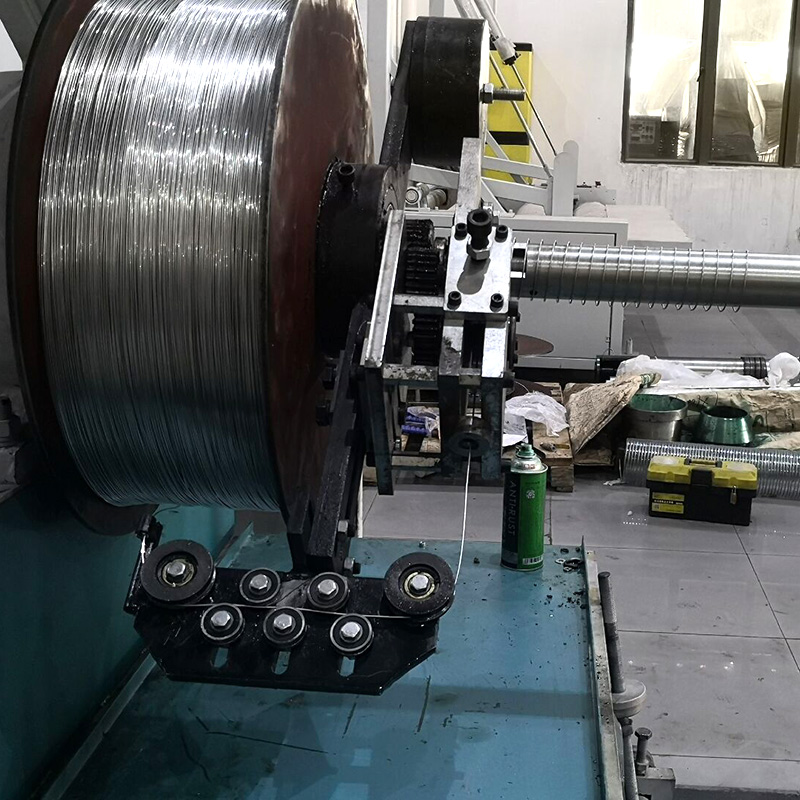

• Steel Spring Forming Machine: Automatically forms the steel spring from steel wire.

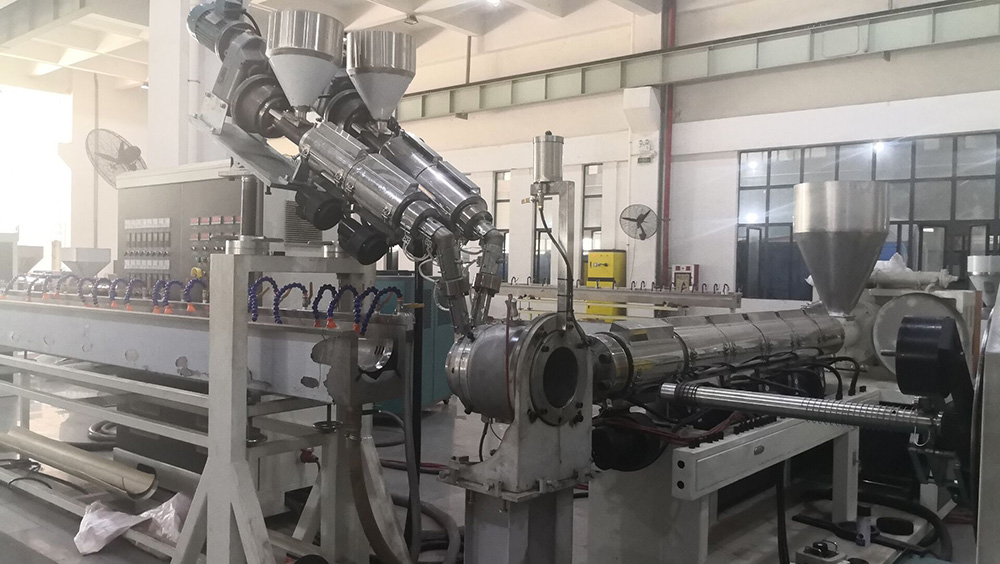

• Extruder: Melts and extrudes the PVC material to coat the steel spring.

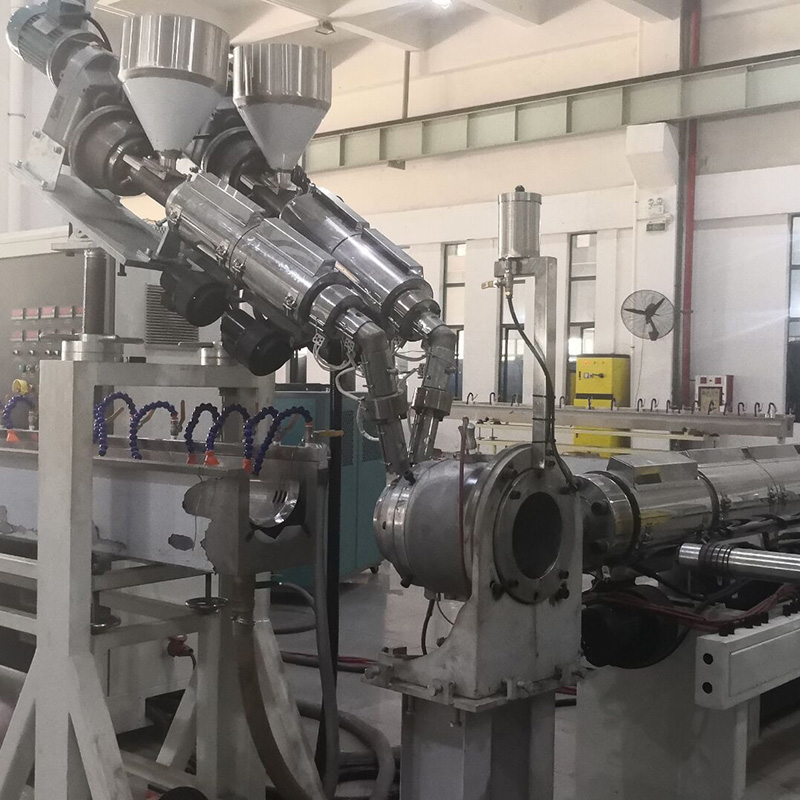

• Cross Die Head: Ensures uniform coating of the steel spring with PVC.

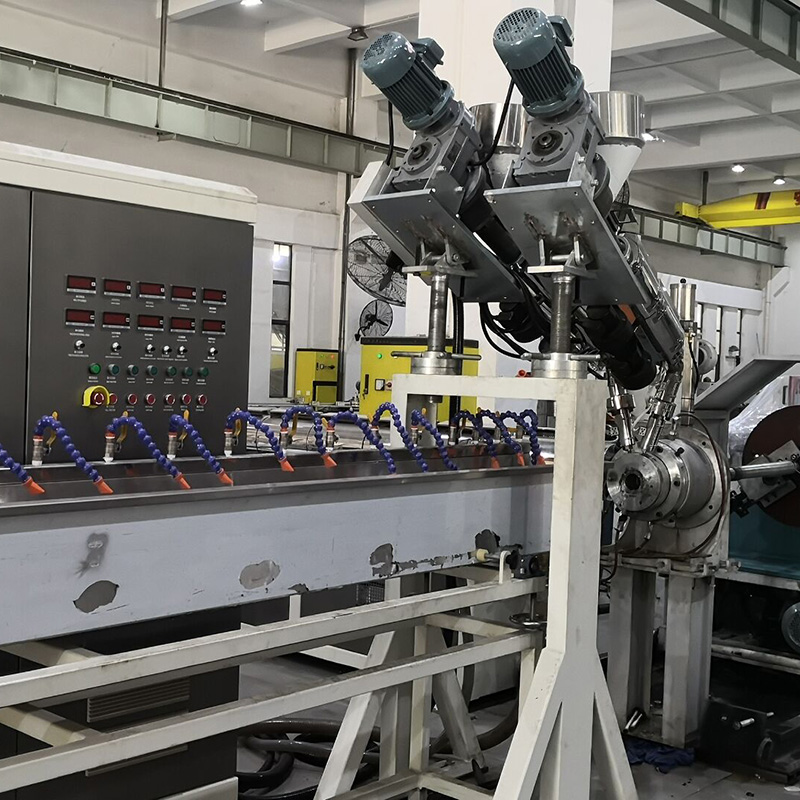

• Spray Water Cooling Tank: Cools the PVC-coated hose to solidify the material.

• Haul-Off Unit: Pulls the hose through the production line at a controlled speed.

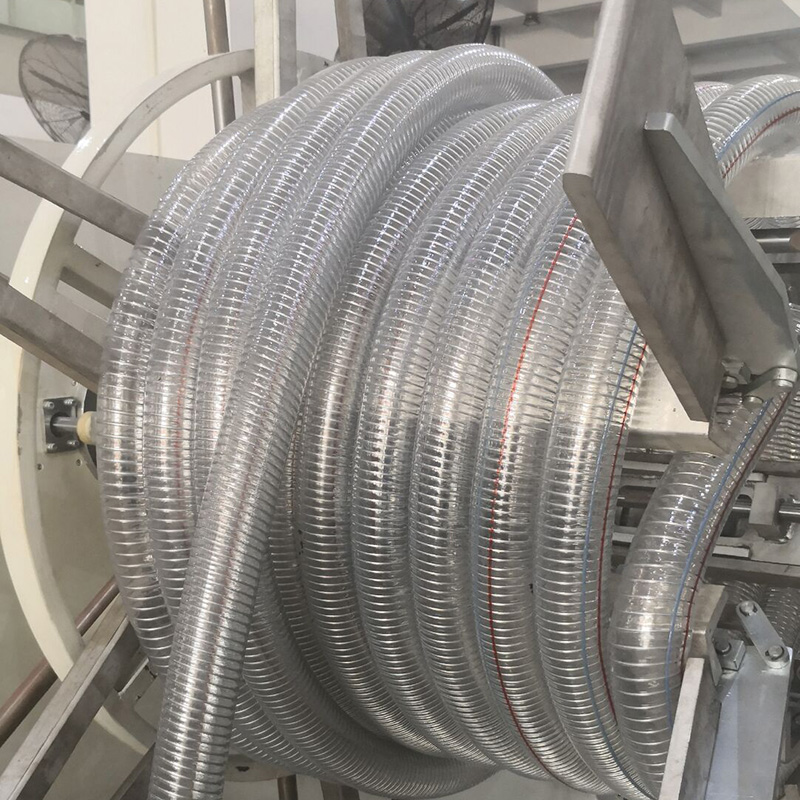

• Winder: Coils the finished hose for easy handling and storage.

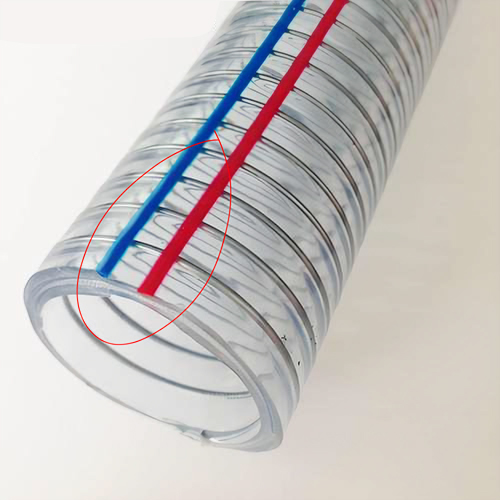

Advantages of Steel Spring Reinforced PVC Hose:

• High Strength: The steel spring reinforcement provides exceptional strength, making the hose resistant to high pressure and mechanical stress.

• Flexibility: Despite its strength, the hose remains flexible due to the PVC coating, allowing it to be used in a variety of applications.

• Durability: The combination of steel and PVC makes the hose highly durable and resistant to wear, corrosion, and environmental factors.

• Wide Application: Suitable for various industrial applications, including hydraulic systems, pneumatic systems, and fluid transfer in harsh environments.

Applications of Steel Spring PVC Pipe Extruder:

• Industrial Hydraulics: Used in high-pressure hydraulic systems where strength and flexibility are required.

• Pneumatic Systems: Ideal for air and gas transfer in industrial settings.

• Fluid Transfer: Suitable for transporting water, oils, and other fluids in demanding environments.

• Construction and Mining: Used in heavy-duty applications where durability and resistance to abrasion are critical.

Conclusion:

The YAOAN Steel Spring Reinforced PVC Hose Extrusion Machine is a robust and versatile solution for producing high-quality, durable hoses that meet the demands of various industrial applications. Its integrated design ensures efficient production, while the use of high-quality materials guarantees the performance and longevity of the final product.
