YAOAN's multi-layer pipe co-extrusion line involves serveral extruders and co-extrusion die head(s). There are many applications such as multi-layer PA pipe machine, multi-layer cosmetical pipe machine, multi-layer yarn braided PVC pipe machine, multi-layer TPU high pressure hose machine, 6 layer HDPE-Nylon composite pipe machine which is widely used for petroleum pipe line.
This introduction of this 6 layer composite pipe extrusion equipment.
Extruder: Single-screwextruder adopts newstylehigh-efficiency screw which provides good capabilityof hiah rotation speed,output and plasticization,
Extrusion mould: adopts newly-designed multi-layelco-extrusion die-head,and spiralflow-channelwhich features stable extrusion,easy remove fusionline and adiustable.
Vacuum calibrator: vacuum spraying water tankspraying water cooling tank or high-efficiencycooling tank,tank bodyis made of stainless steel.
Haul-off unit: double-belt or rubber pedrail haul-offunit to satisfy the different reguirements ofproduction.
Single-shaft winding unit: the winding torque can beadjustable, also have the function of alignment,suitable for winding Max. p110mm pipe.
Electric controlsystem: many types of controlsystem are available for customer's selection.(suchas PLC automatic controlsystem perform stablerunning,and easy operation.

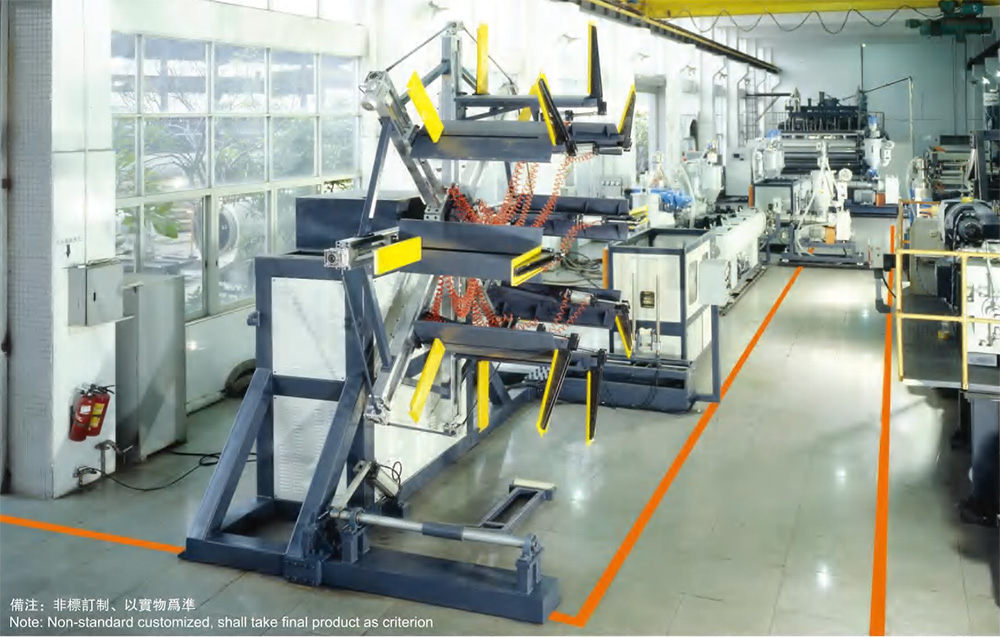

The pictures shows the HDPE six-layer co-extrusion pipe machine,the Min.thickness of single layer is around 0.12mm,it is widely used for petroleum pipe line.
PLEASE CHECK VIDEO LINK OF 5 LAYER COSMETIC REFILL PIPE MACHINE
5 LAYER : LDPE-GLUE-EVOH-GLUE-HDPE
Yes, we supply detailed user manual for your reference. PLS read it carefully for guide. If there is still problem which could not be solved, PLS contact us, we are ready to help you anytime.
We supply perfect overseas service. We shall send engineers to overseas for machine installation and commissioning and test production guide, and also training to the workers of the buyer. And we are ready to give technical support anytime.
he guarantee period of our machine is 12 months after the machine is installed well in buyer's factory;
Painted the machine with anti-corrosion oil, and then covered with plastic film, and then packed into wooden case or fixed onto wooden pallet as per clients' requirements, or shall be loaded into container with film packing. After fixed all machines, we will use drying agent to keep container inside dry.
