YAOAN's non-woven fabric ultrasonic welding machine is designed to join the edges of multiple rolls of non-woven fabric to create a wider fabric. This process involves using ultrasonic vibrations to weld the edges together seamlessly, resulting in a continuous fabric whose width is the sum of the individual roll widths.
Ultrasonic Welding Technology:
Utilizes high-frequency ultrasonic vibrations to bond the non-woven fabric layers.
Ensures a strong, durable, and clean weld without the need for adhesives or additional materials.
Wider Fabric Production:
By welding multiple rolls side by side, the machine produces a wider fabric that meets specific width requirements.
The final width is calculated by multiplying the number of rolls by the width of each individual roll.
Applications in Agriculture:
The welded non-woven fabric is widely used in agricultural applications such as crop covers, weed control fabrics, ground cover, and protective layers for soil.
It helps in moisture retention, temperature regulation, and protection against pests, contributing to improved crop yields and soil health.
Advantages:
Efficiency: The ultrasonic welding process is fast and efficient, allowing for high production rates.
Eco-Friendly: No chemicals or adhesives are used, making it an environmentally friendly option.
Durability: The welded seams are strong and resistant to tearing, ensuring the fabric's longevity in demanding agricultural environments.
Customization:
The machine can be customized to handle different widths and thicknesses of non-woven fabric, making it versatile for various agricultural needs.
YAOAN's non woven ultrasonic welding Fabric Machine is an essential tool in the production of wide non-woven fabrics used in agriculture. Its ability to efficiently and effectively weld multiple rolls together ensures the creation of durable, wide fabrics that play a crucial role in modern farming practices.
Non-woven Fabric Ultrasonic Welding Machine

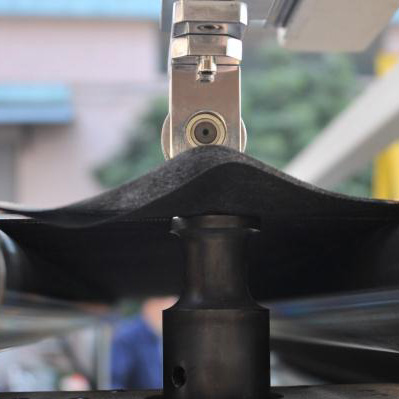

Description: Automatic non-woven fabric welding machine use Taiwan imported ultrasonic system, Japan imported transducer, stable performance; ultrasonic welding wheel use imported high-quality steel DC53, wear-resistant and durable.mould long life, fully automatic operation, high efficiency. Widely used in clothing,car cover, Non-woven bags andother industries.
Features: this non woven ultrasonic welding fabric machine can be used for multi-layer non-woven fabric welding and fold, it suitable for ultra-width non-woven fabric processing. Welding strong,no need preheating,it can work continuously with high speed and high output. Process not make any smoke.no spark, no damage fabric edge.
Main technical parameters:
Non-woven fabric width:1.6 m,2.4 m,3.2 m,4 m(can be customized according to customer needs)
Non-woven fabric GSM range :15-200g /㎡
Non-woven fabric roller diameter: 1.0 m -1.2 m
Paper bobbin diameter: 76mm
Production linear speed: 15-33 m/ min
Welding material width and edge welding pattern can be design according to customer's requirement or sample.

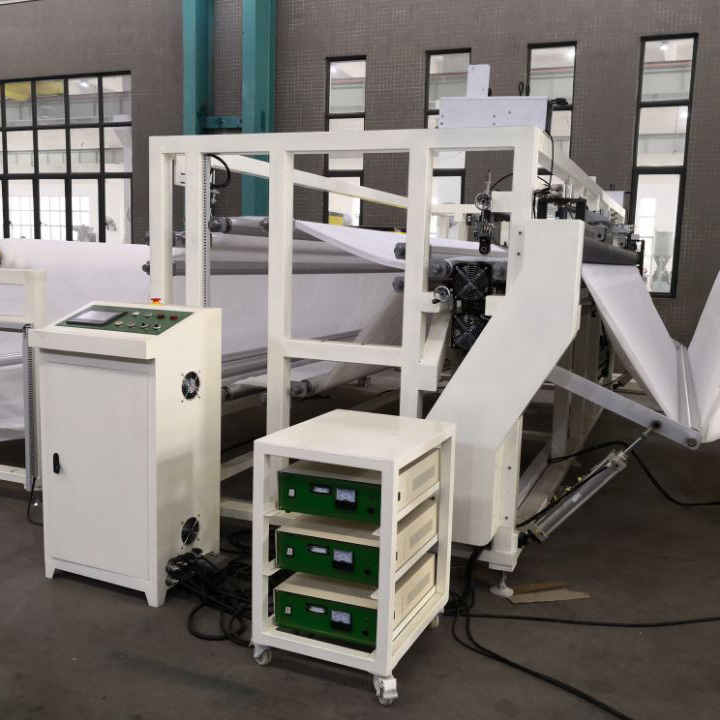

3.2 m non-woven fabric ultrasonic welding machine

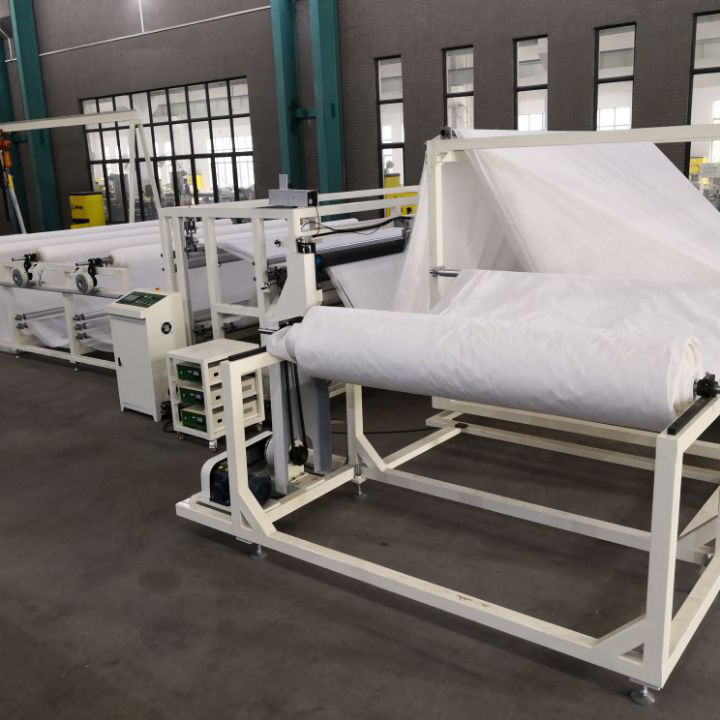

4.2 m non-woven fabric ultrasonic welding machine
Yes, we supply detailed user manual for your reference. PLS read it carefully for guide. If there is still problem which could not be solved, PLS contact us, we are ready to help you anytime.
We supply perfect overseas service. We shall send engineers to overseas for machine installation and commissioning and test production guide, and also training to the workers of the buyer. And we are ready to give technical support anytime.
he guarantee period of our machine is 12 months after the machine is installed well in buyer's factory;
Painted the machine with anti-corrosion oil, and then covered with plastic film, and then packed into wooden case or fixed onto wooden pallet as per clients' requirements, or shall be loaded into container with film packing. After fixed all machines, we will use drying agent to keep container inside dry.
