PP Bale Strap Extruder

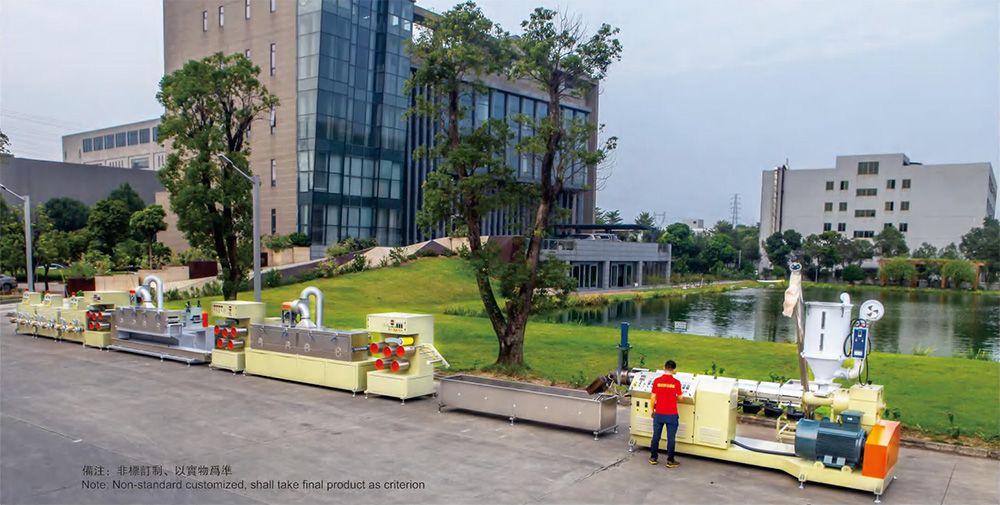

PP Bale Strap Extruder Introduction

The PP Bale Strap Extrusion Machine is a comprehensive production line designed for manufacturing polypropylene (PP) bale straps, which are widely used in packaging and bundling applications. These straps are known for their high strength, durability, and flexibility. The PP bale strap machine is highly versatile and can produce bale straps in single color, two colors, or sandwich style. Additionally, it is available in configurations with 2, 4, 6, or 8 cavities, allowing for high-volume production. Below is a detailed breakdown of the packing belt extrusion equipment's components, process, and configurations.

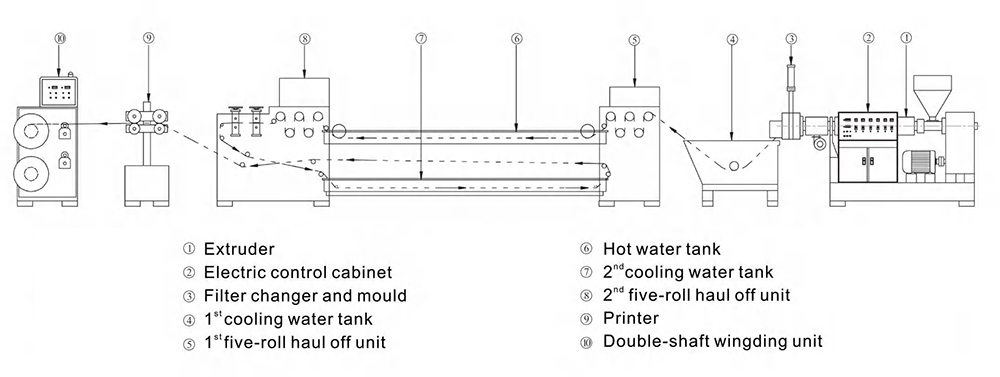

Packing Belt Extrusion Equipment Components and Process

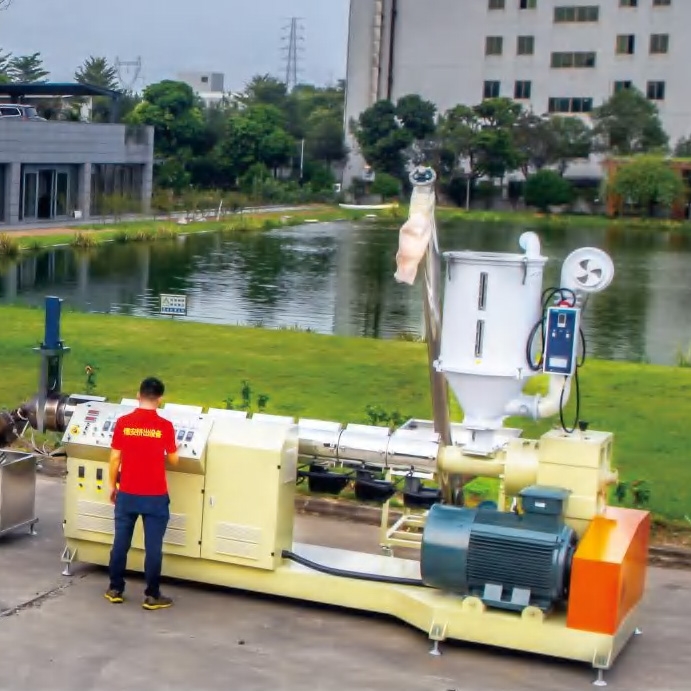

1. Extruder:

• The raw PP material is fed into the extruder, where it is melted and homogenized.

• The extruder screw pushes the molten PP through the die head.

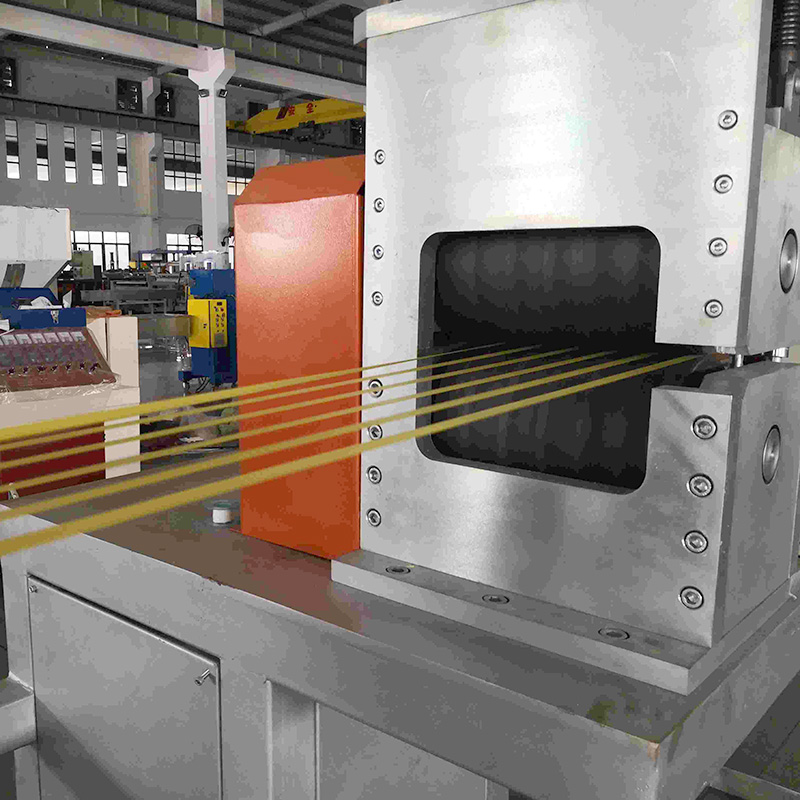

2. Die Head:

• The die head shapes the molten PP into flat straps of the desired width and thickness.

• For multi-color or sandwich-style straps, the die head is designed to layer different colors or materials.

3. Cold Water Tank:

• The extruded straps pass through a cold water tank to cool and solidify the material.

• Cooling ensures the straps retain their shape and dimensions.

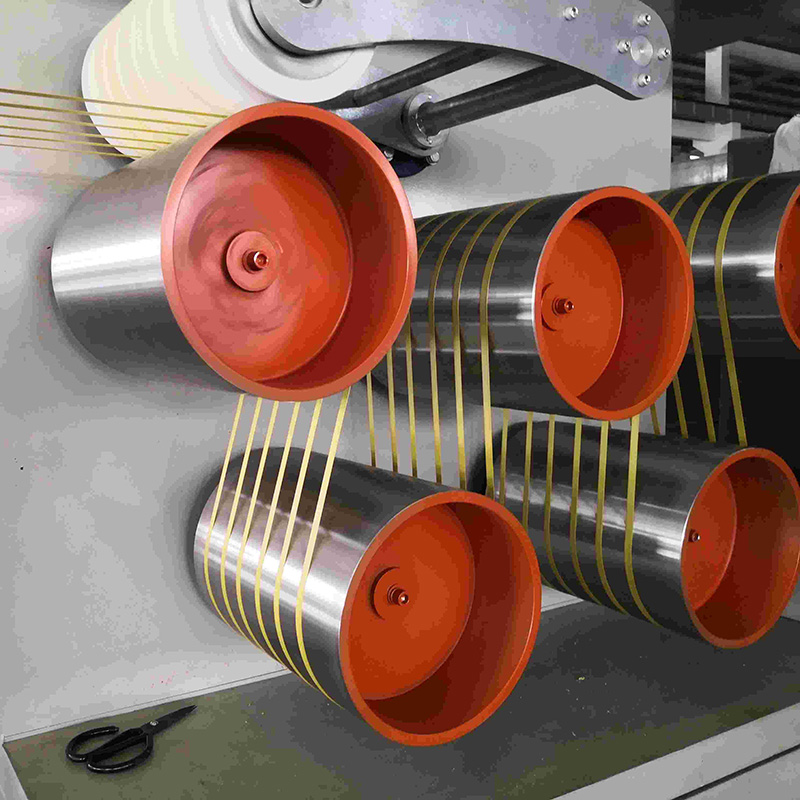

4. 5-Roller Haul-Off Unit (Initial):

• The cooled straps are pulled through the first haul-off unit at a controlled speed to maintain consistency.

5. Hot Air Circular Oven:

• The straps are heated in a circular oven to prepare them for stretching.

• Heating softens the material, making it easier to stretch and align the polymer chains for increased strength.

6. 5-Roller Haul-Off Unit (Stretching):

• The heated straps are stretched to achieve the desired tensile strength and thickness.

• Stretching also improves the strap's mechanical properties.

7. Embossing Unit:

• The straps pass through an embossing unit to add surface patterns or textures.

• Embossing improves grip and enhances the strap's appearance.

8. Stabilizing Oven (with Water Tank):

• The straps are reheated in a stabilizing oven to relieve internal stresses caused by stretching.

• A water tank cools the straps again to lock in the stabilized structure.

9. 5-Roller Haul-Off Unit (Final):

• The straps are pulled through the final haul-off unit to ensure uniform tension and smoothness.

10. Automatic Winders:

• The finished straps are wound onto spools or coils using automatic winders.

• The winders ensure consistent winding tension and neat packaging.

•


PP Bale Strap Extruder Configurations

1. Single Color PP Bale Strap Machine:

• Produces bale straps in a single color.

• Suitable for standard applications where color variation is not required.

2. Two-Color PP Bale Strap Machine:

• Produces bale straps with two distinct colors.

• Ideal for applications requiring color coding or branding.

3. Sandwich-Style PP Bale Strap Machine:

• Produces bale straps with a layered structure (e.g., a core layer sandwiched between two outer layers).

• Enhances strength, flexibility, or other material properties.

4. Cavity Styles:

• 2-Cavity Machine: Produces 2 straps simultaneously.  Output about 30-40KG/HR

• 4-Cavity Machine: Produces 4 straps simultaneously.   output about 150-200kg/hr

• 6-Cavity Machine: Produces 6 straps simultaneously.    output about 200-400kg/hr

• 8-Cavity Machine: Produces 8 straps simultaneously.    output about 400-600kg/hr

• The packing belt extrusion equipment can be configured with different numbers of cavities to increase production capacity.

•


5.


Key Features of the Packing Belt Extrusion Equipment

• High Efficiency: Multi-cavity designs and automated processes ensure high production rates.

• Customizable: Adjustable die heads, embossing units, and haul-off systems allow for customization of strap width, thickness, and surface texture.

• Material Versatility: Primarily designed for PP but can be adapted for other thermoplastic materials.

• Energy Efficiency: Advanced cooling and heating systems optimize energy use.

• Durability: Produces high-strength straps suitable for heavy-duty bundling and packaging.

•

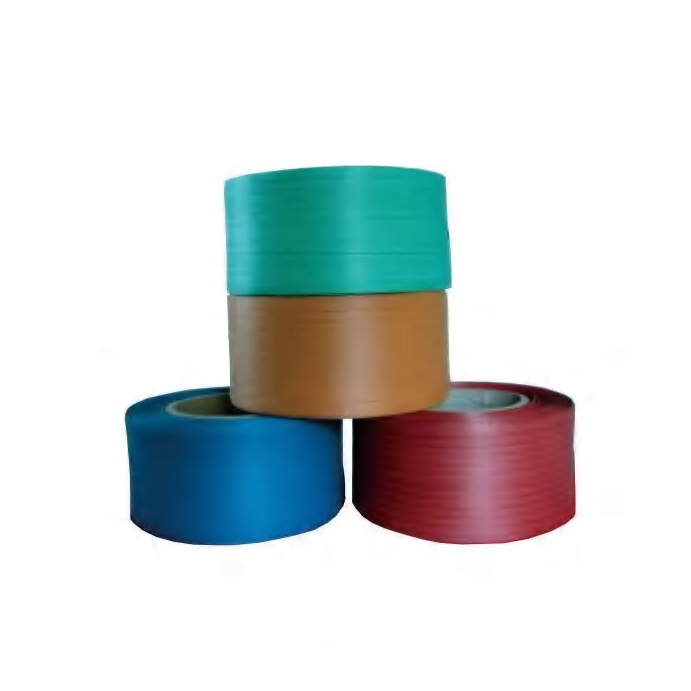

Applications of PP Bale Straps

1. Packaging:

• Used for bundling and securing products in industries such as textiles, paper, and construction materials.

2. Logistics:

• Ideal for strapping pallets and containers during transportation.

3. Agriculture:

• Used for baling hay, straw, and other agricultural products.

4. Recycling:

• Commonly used in recycling facilities to bundle recyclable materials like cardboard, plastics, and metals.

•


Advantages of Packing Belt Extrusion Equipment

• High-Quality Straps: Produces straps with excellent tensile strength, flexibility, and durability.

• Versatility: Capable of producing straps in various colors, styles, and sizes.

• Scalability: Multi-cavity designs allow for high-volume production to meet market demands.

• Automation: Reduces labor costs and ensures consistent product quality.

•


The packing belt extrusion equipment is a state-of-the-art solution for manufacturing high-quality bale straps for a wide range of industries. Its advanced features, customizable configurations, and high efficiency make it an essential tool for manufacturers in the packaging and logistics sectors.
