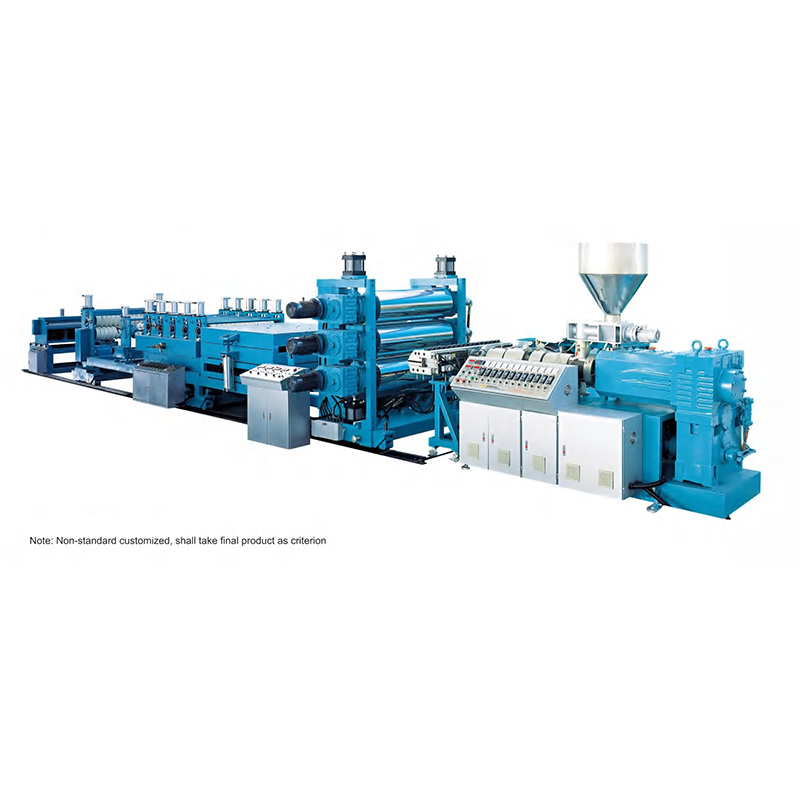

PVC Conical Twin-screw Comugated Sheet Extrusion Machine
The PVC Conical Twin-Screw Corrugated Sheet Extrusion Machine is specifically designed for processing PVC powder material, particularly for producing PVC clear roof sheets. It features a conical twin-screw extruder, which ensures high efficiency, uniform plasticization, and long-term stable operation.
Specialized Design: Optimized for PVC powder material, ensuring high-quality extrusion.
High Efficiency: Capable of producing PVC roof sheets with consistent thickness and surface quality.
Durability: Equipped with wear-resistant components and precise temperature control systems for long-term operation.
Versatility: Suitable for producing PVC clear roof sheets of various widths and thicknesses.
PVC Roof Sheet Width: 1050mm, 800mm
PVC Clear Roof Sheet Thickness: 0.6mm - 1.5mm
Screw Diameter and Capacity:
65/132: 200-250 kg/hr
80/156: 300-350 kg/hr

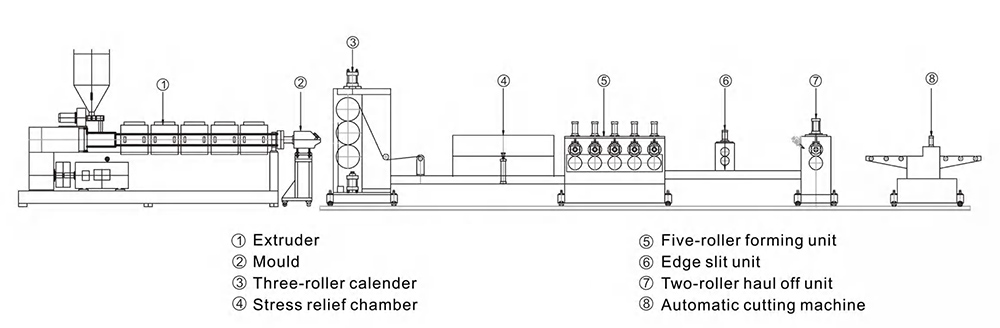

Function: Blends PVC powder with calcium carbonate, stabilizers, DOP, and other additives.
Advantage: Ensures uniform mixing of materials, improving the quality of the final product.
Function: Feeds the blended PVC powder into the extruder.
Advantage: Screw-style design prevents material bridging and ensures consistent feeding without separation.
Function: Extrudes the blended PVC material into sheets.
Features:
Bimetal Jacket: Tear and wear-resistant, ensuring durability.
Temperature Control System: Maintains precise screw temperature, preventing burn points and ensuring long-term operation.
Screw Options:
Diameter: 65/132 (Capacity: 200-250 kg/hr)
Diameter: 80/156 (Capacity: 300-350 kg/hr)
Function: Shapes the extruded PVC material into sheets.
Advantage: Specially designed for PVC material, ensuring no plastic remains in corners.

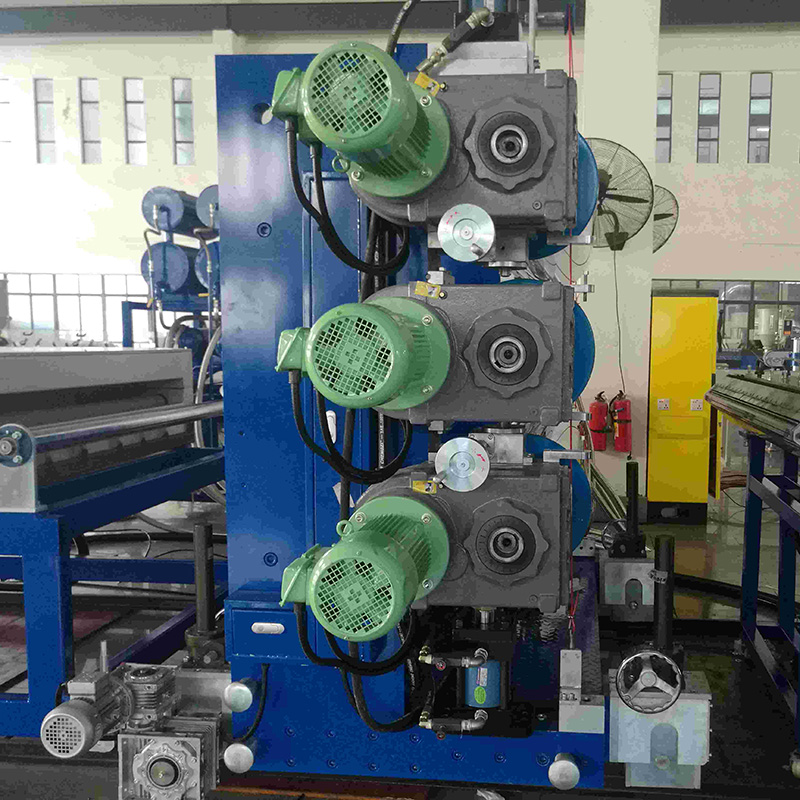

Function: Forms the PVC sheets into the desired thickness and surface finish.
Features:
Precision Design: Temperature tolerance of no more than 1°C.
Oil Thermostat Regulators: 3 sets (one for each calender roller) for precise temperature control.
Function: Heats the PVC sheets for further processing.
Advantage: Accurate temperature settings ensure consistent product quality.

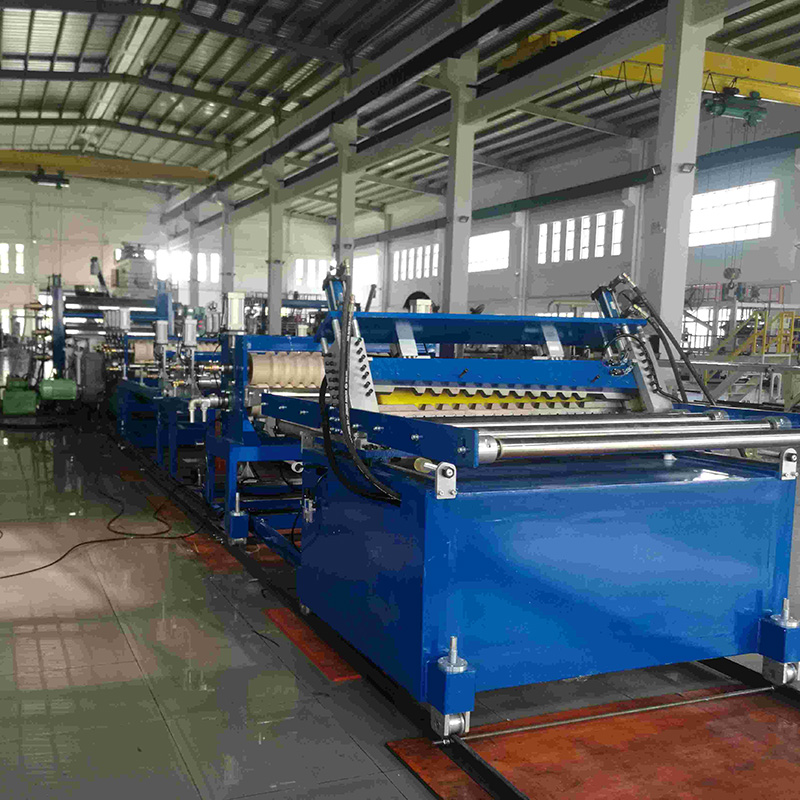

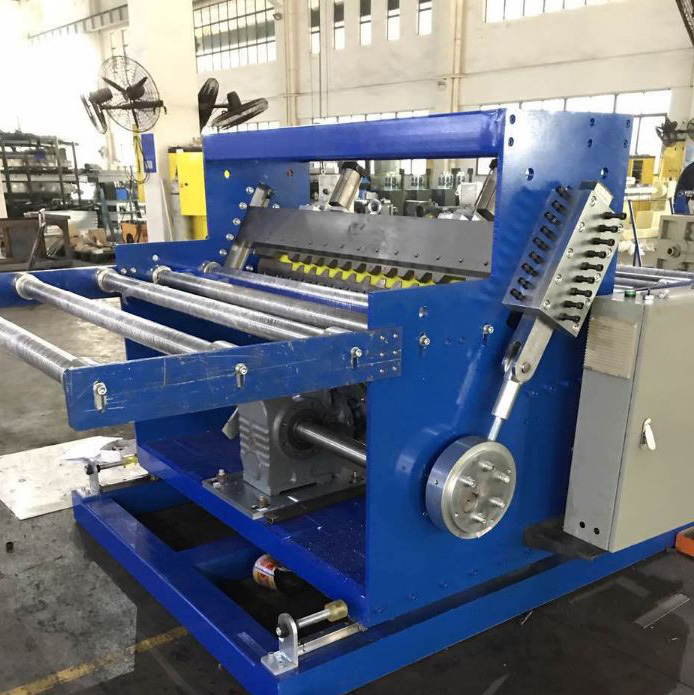

Function: Shapes the PVC sheets into corrugated roof profiles.
Advantage: Produces well-formed roofs with no deformation.
Function: Trims and cools the formed PVC sheets.
Advantage: Ensures the final product has smooth edges and proper dimensions.
Function: Pulls the PVC sheets through the production line.
Advantage: Ensures smooth and consistent movement of the sheets.
Function: Cuts the PVC sheets to the desired length.
Advantage: Provides precise and clean cuts.

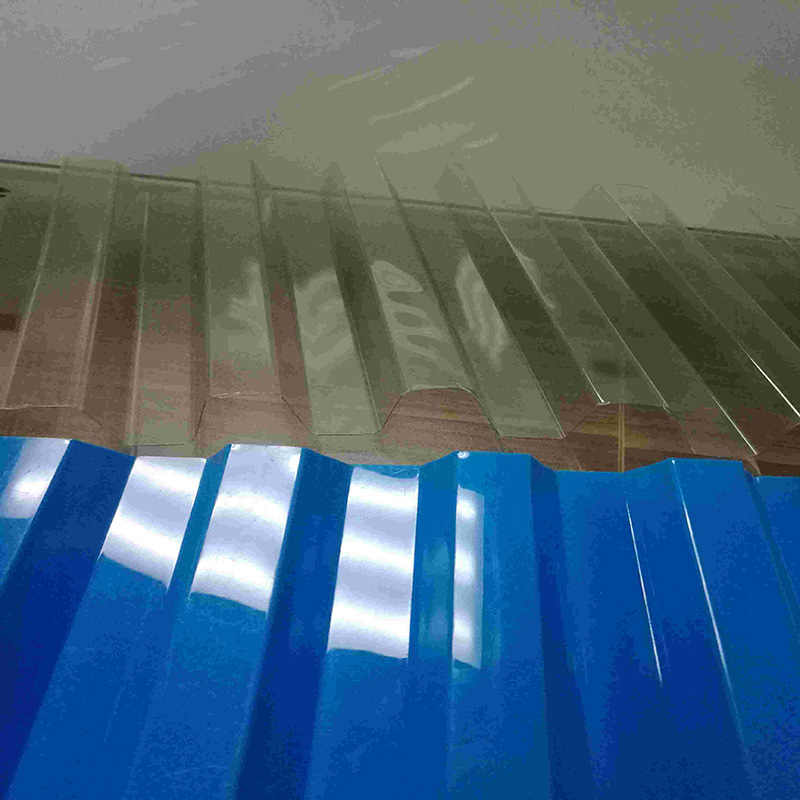

PVC Clear Roof Sheets: Ideal for applications requiring transparency and durability, such as greenhouses, skylights, and industrial roofing.
Corrugated Roofing: Suitable for residential, commercial, and industrial buildings.
High-Quality Output: Produces smooth, uniform, and durable PVC roof sheets.
Efficient Production: High-capacity extrusion ensures fast and consistent output.
Precision Control: Advanced temperature and thickness control systems ensure product consistency.
Durability: Wear-resistant components and robust design ensure long-term operation with minimal maintenance.
The PVC Conical Twin-Screw Corrugated Sheet Extrusion Machine is a high-performance solution for producing PVC clear roof sheets and corrugated roofing materials. Its advanced design, precise control systems, and durable components make it an ideal choice for manufacturers seeking efficiency, quality, and reliability in PVC sheet production.
PVC Wave Tile Extrusion Equipment Application
The PVC wave tile extrusion equipment is suitable for online extrusion processes of multiple materials, high proportions, and high precision such as particles, sheets, recycled materials, or powders in the plastic industry. The advantages of our PVC clear roof tile sheet machine, product is more transparent and more shinning and help client to save cost by make thinner PVC roof.
Our Services
1. We provide 100% service. Bulk and customized small packaging, FOB, CIF, DDU and DDP. Let us help you find the best solution for all your concerns.
We practise the service principle that 'customer is God'. We provide thoughtful pre-sales and after-sales service. We produce PVC clear roof tile sheet machines that satisfy our customers and provide after-sales service including installation, startup operating extrusion machines, and personnel training. Customer compliments are our greatest wish.
2. Our research and development department's main objectives are:
1. To keep up with the development of industry related technologies, continuously improve the productivity, automatic grade of operation and minimize energy consumption of of existing machines.
2 Maintain an open attitude towards customer requirements and work together with them to develop PVC transparent corrugated roof sheet extrusion line:
A. We can produce machines according to customer drawings and blueprints
B. We can work together with customers to develop new PVC wave tile extrusion equipments for their special products.
3. The PVC clear roof tile sheet machines cannot be allowed for shipment untill the customers confirm the result of machine test with raw material. Our staff also tests PVC transparent corrugated roof sheet extrusion line for several hours to check whether the sizes of plastic products are according to drawings, whether the ampere of motors are stable or not, whether machine runing is steady quietly., whether the machine output is up to manufacturing orders
Yes, we supply detailed user manual for your reference. PLS read it carefully for guide. If there is still problem which could not be solved, PLS contact us, we are ready to help you anytime.
We supply perfect overseas service. We shall send engineers to overseas for machine installation and commissioning and test production guide, and also training to the workers of the buyer. And we are ready to give technical support anytime.
he guarantee period of our machine is 12 months after the machine is installed well in buyer's factory;
Painted the machine with anti-corrosion oil, and then covered with plastic film, and then packed into wooden case or fixed onto wooden pallet as per clients' requirements, or shall be loaded into container with film packing. After fixed all machines, we will use drying agent to keep container inside dry.
