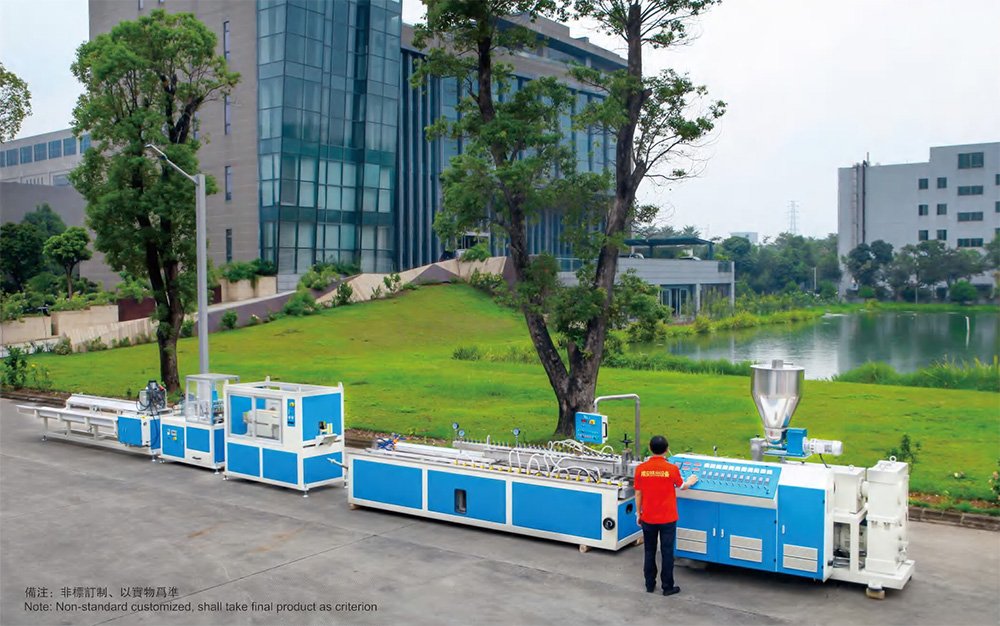

Conical Twin-screw Profile Extrusion Line

Introduction of Conical Twin-screw Profile Extrusion Line

The Conical Twin-Screw Profile Extrusion Line is a highly efficient and robust system designed for the large-scale production of plastic profiles using PVC powder as the primary raw material. This type of extrusion line is equipped with a conical twin-screw extruder, which is specifically designed to handle high filler content (such as calcium carbonate (CaCO3) and ensure long-lasting performance. It is widely used for manufacturing cable trunks, roof gutters, window frames, ceiling boards, wall panels, door panels, and door boards. Below is a detailed introduction to the machine, its features, and its models:

Key features of the cable trunking extrusion machine

1. Conical Twin-Screw Extruder:

• The conical twin-screw design ensures excellent material mixing, melting, and homogenization.

• Ideal for processing PVC powder with high filler content (e.g., calcium carbonate).

• The gradual compression of the conical screws improves material flow and reduces wear.

2. Special Bi-Metal jacket Design On Screw and Barrel:

• The screw and barrel are made from special bi-metal materials, ensuring high wear resistance and a longer lifespan.

• Suitable for processing abrasive materials like PVC with high CaCO3 content.

3. High Output Production:

• Designed for large-scale production of profiles, making it ideal for industrial applications.

• Capable of producing both single large profiles and multi-cavity designs.

4. Versatility:

• Can produce a wide range of profiles, including complex shapes and designs.

• Suitable for rigid, semi-rigid, and flexible profiles.

5. Energy Efficiency:

• Advanced heating and cooling systems optimize energy consumption while maintaining high output.

Ceiling board extrusion line components and process

1. Conical Twin-Screw Extruder:

• The PVC powder (with fillers like CaCO3) is fed into the extruder, where it is melted and homogenized.

• The conical screws gradually compress and melt the material, ensuring uniform consistency.

2. Die Head:

• The molten PVC is forced through a die head, which shapes it into the desired profile.

• The die head can be designed for single or multi-cavity production.

3. Cooling System:

• The extruded profile passes through a cooling system (usually water or air cooling) to solidify the material.

• Cooling ensures the profile retains its shape and dimensions.

4. Haul-Off Unit:

• A haul-off machine pulls the cooled profile at a controlled speed to maintain consistency in the extrusion process.

5. Cutting Unit:

• The profile is cut into the desired lengths using a cutting machine.

• For continuous profiles, the cutting unit can be synchronized with the extrusion speed.

6. Stacking or Winding Unit:

• The finished profiles are stacked or wound for packaging and distribution.

•


Applications of PVC door panel extrusion line

1. Cable Trunks:

• Produces durable and flame-retardant cable management systems.

2. Roof Gutters:

• Manufactures weather-resistant and UV-stable gutters for roofing systems.

3. Window Frames:

• Creates strong, lightweight, and thermally efficient window frames.

4. Ceiling Boards:

• Produces decorative and functional ceiling panels for interior design.

5. Wall Panels:

• Manufactures durable and aesthetically pleasing wall cladding.

6. Door Panels and Boards:

• Creates lightweight yet sturdy panels for doors and partitions.

•


PVC window frame extrusion line models and specifications

The PVC window frame extrusion line is available in various models to meet different production needs. Below are the key models and their specifications:

Advantages of the Conical Twin-Screw Profile Extrusion Line

• High Wear Resistance: Bi-metal screw and barrel design ensures long-lasting performance, even with high CaCO3 content.

• High Output: Ideal for large-scale production of profiles.

• Precision: Ensures consistent dimensions and high-quality surface finish.

• Material Efficiency: Minimizes material waste through precise control of the extrusion process.

• Flexibility: Can produce a wide range of profiles for diverse applications.

• Durability: Produces profiles with excellent mechanical properties and long service life.

•


Why Choose PVC roof gutter extrusion line?

• Superior Mixing and Melting: The conical twin-screw design ensures uniform material processing.

• Customizable: Die heads and downstream equipment can be tailored to specific profile requirements.

• Energy-Efficient: Advanced systems reduce energy consumption while maintaining high productivity.

• Wide Applications: Suitable for industries such as construction, automotive, and electrical.

•


The Ceiling board extrusion line is a state-of-the-art solution for producing high-quality plastic profiles with precision and efficiency. Its advanced technology, durability, and versatility make it an essential tool for manufacturers in various industries.

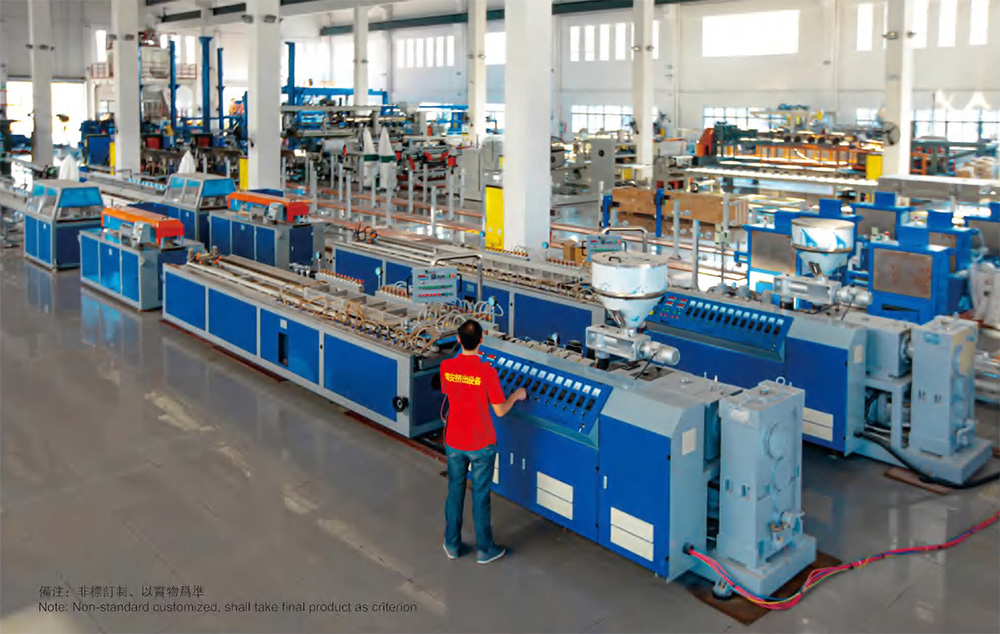

Conical twin-screw abnormal profile extruder lines are configured with corresponding mould、accessorial device ,can be used for PVC abnormal profile extrusion forming processing.

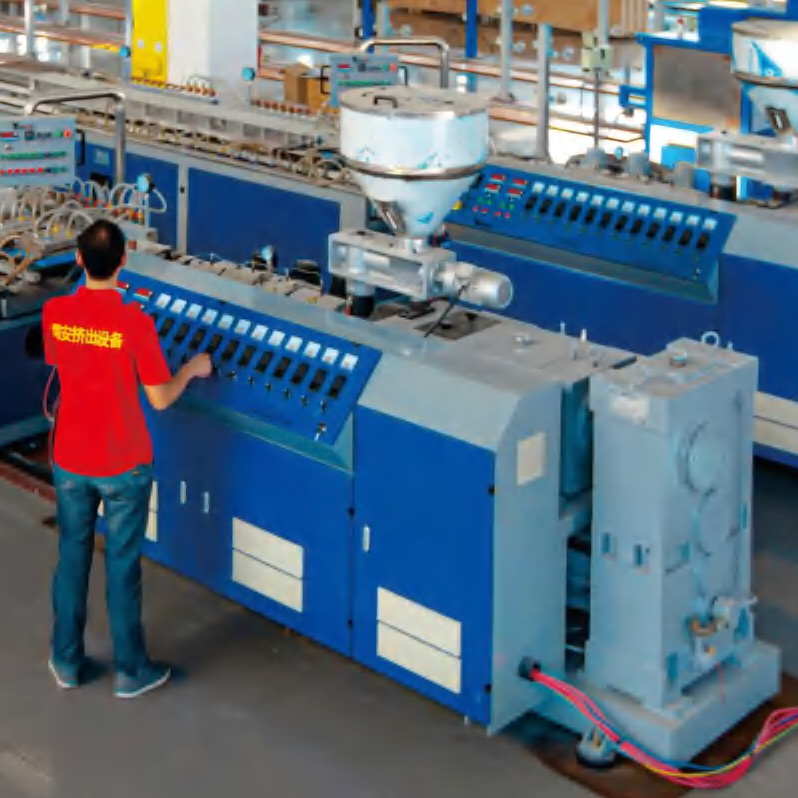

Rigid PVC abnormal profile extruder line type:AFF150、AFF300、AFF400、AFF1000、AFF1200The characteristic of conical twin screw extruder Special screw design ,short plasticizing time, good compounding and plasticizing effect.

Adopts high quality gear box,with nice outsiderunning stability, low noise.The barrel adopts ceramicheater, wind cooling system ,has good performance ofheating ,cooling and precise temperature controlling.

The screw adopts core temperature controler system.lt adopts vacuum degassing system, which canget rid of the waste gas ,water from melt materials , inorder to upgrade the products 'quality .

The mainmotor adopt silicon D.C speed regulator or inverter,which provides stability torque output ,various speedregulation.lt's suitable for thermal sensitivity PVC powder.

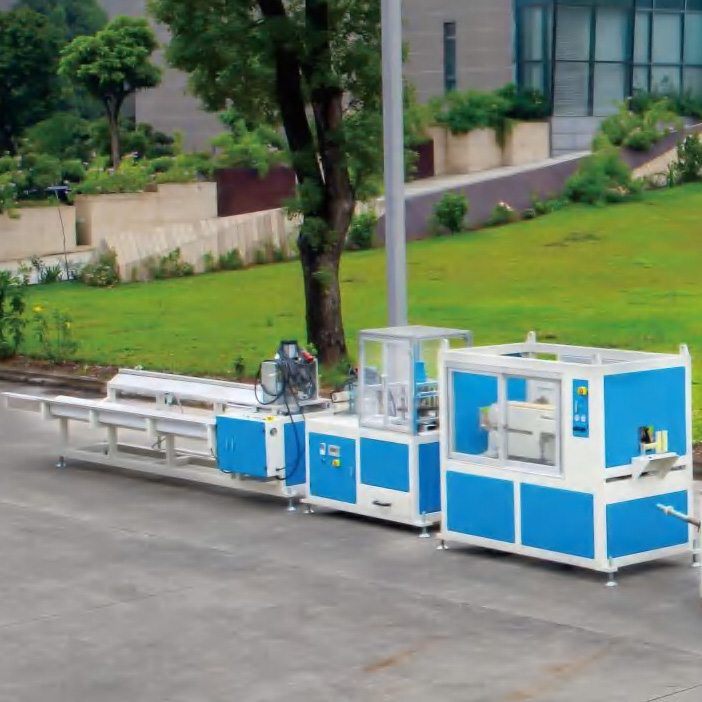

Series of abnormal profile calibration device: three.dimensional, easy for adjusting.Series of 2-pedrail haul off unit for abnormal profileit can suitable for different requirement of abnormaprofile

Cutting unit:chip-free rotary knife cutting, sawcutting ,and planet saw cutting(with chamferedblade)

Stacking unit: automatic overturning stackingMany options for electric controller system(such as:PLC automatic controller system),it has goodperformance of easy operation and stability running
