Single Directional Glass Fiber CFRT Sheet Machine Introduction
A Single Directional Glass Fiber CFRT (Continuous Fiber Reinforced Thermoplastic) Sheet Machine is specialized equipment designed to produce high-performance composite sheets. These sheets are reinforced with unidirectional glass fibers embedded in a thermoplastic matrix, offering exceptional strength and stiffness in one direction. This type of galss fiber coated PP sheet machine is widely used in industries such as automotive, aerospace, construction, and sports equipment.
Unidirectional Fiber Alignment:
The Glass fiber reinforced composite sheet extruder ensures precise alignment of glass fibers in a single direction, maximizing mechanical properties like tensile strength and stiffness along the fiber orientation.
Thermoplastic Matrix Integration:
The machine combines glass fibers with thermoplastic resins (e.g., PP, PA, PEEK) to create a lightweight, durable, and recyclable composite material.
Continuous Production:
The process is continuous, allowing for the production of long sheets or rolls of CFRT material with consistent quality.
Customizable Thickness and Width:
The machine can produce sheets of varying thicknesses and widths to meet specific application requirements.
High-Speed Production:
Advanced machines are designed for high-speed production, ensuring efficiency and cost-effectiveness.
Automated Control System:
Equipped with PLC (Programmable Logic Controller) and HMI (Human-Machine Interface) for precise control over temperature, pressure, and fiber/resin ratios.

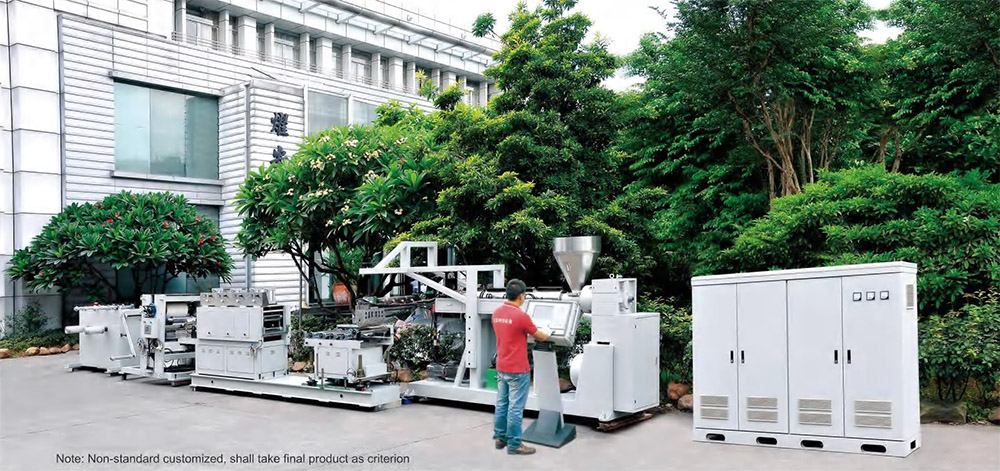

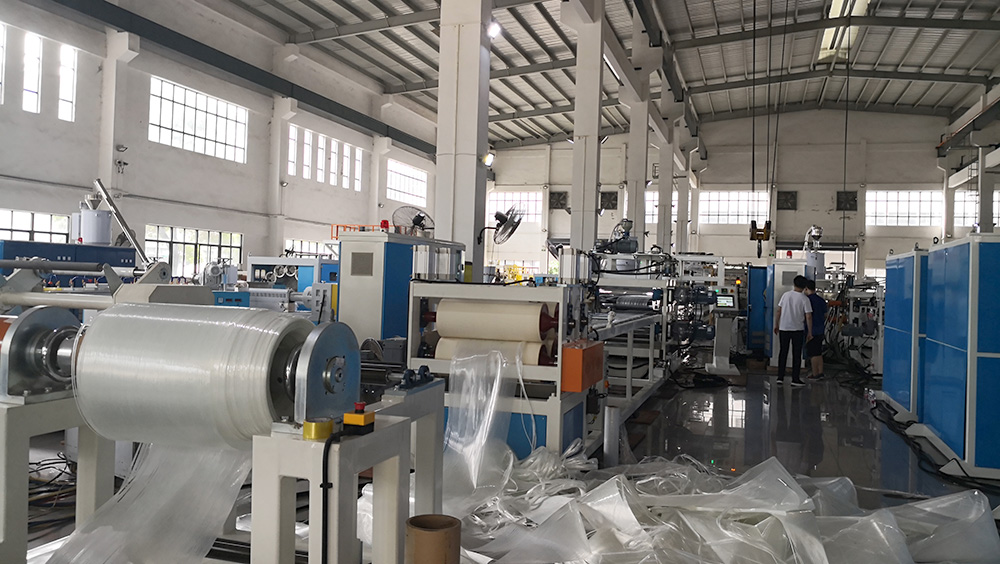

Main Components of the PP galss fiber cfrt sheet extrusion line

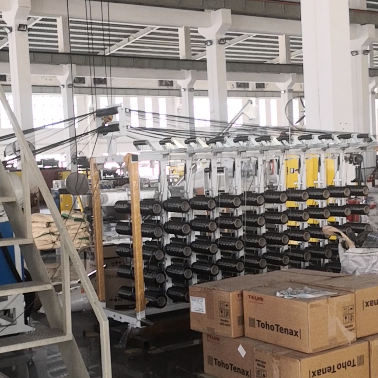

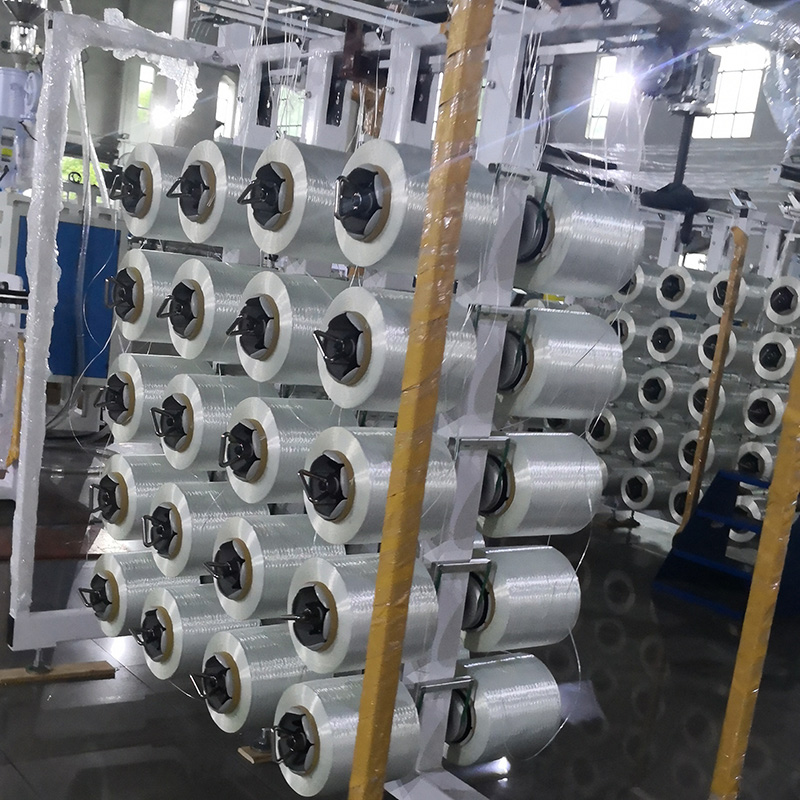

Fiber Creel System:
Holds and feeds the glass fiber rovings into the machine.

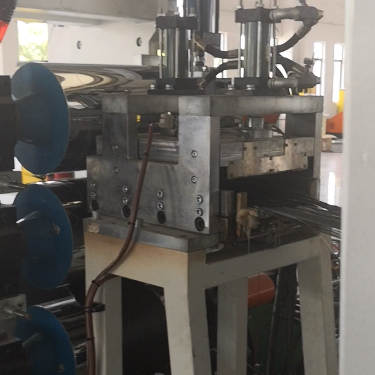

Impregnation Unit:
Combines the fibers with molten thermoplastic resin to ensure proper wetting and adhesion.
Heating and Cooling Systems:
Heats the resin for impregnation and cools the composite sheet for solidification.
Alignment and Compression Unit:
Aligns fibers unidirectionally and applies pressure to consolidate the sheet.

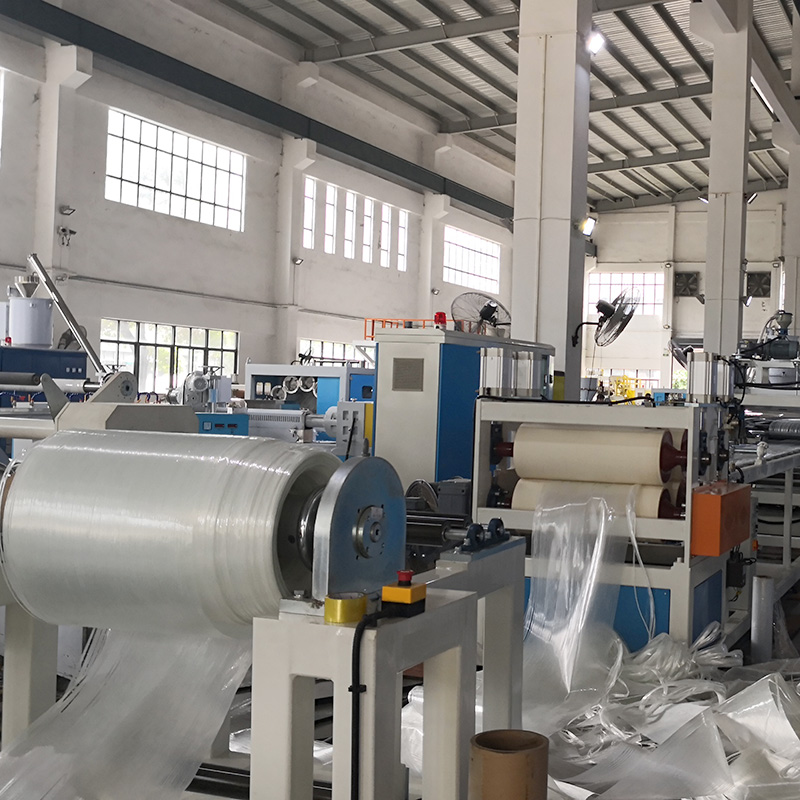

Cutting and Winding System:
Cuts the sheets to desired lengths or winds them into rolls for storage and transport.
High Strength-to-Weight Ratio: Ideal for lightweight structural applications.
Design Flexibility: Can be tailored for specific mechanical properties.
Corrosion Resistance: Suitable for harsh environments.
Recyclability: Thermoplastic composites can be reprocessed, reducing environmental impact.
Application of Galss Fiber Coated PP Sheet Machine
Automotive: Structural components, interior panels, and underbody shields.
Aerospace: Lightweight panels and reinforcements.
Construction: Cladding, roofing, and reinforcement sheets.
Sports Equipment: Skis, snowboards, and bicycle frames.
Conclusion
The Single Directional Glass Fiber CFRT Sheet Machine is a state-of-the-art solution for producing high-performance composite materials. Its ability to align fibers unidirectionally and integrate them with thermoplastic resins makes it a valuable tool for industries requiring lightweight, strong, and durable materials. With advanced automation and customization options, this machine ensures efficient and high-quality production.
The glass fiber reinforced composite board extrusion line is applicable for making glass fiberreinforced thermal plastic(e.g: PP) composite board.Thefeatures of composite board as follows:
A: A super impact and fatigue resistance
B: Its toughness is much stronger than expoxy resin,and it can be recyclable.
C: the products suitable for surface coating, silk-screen printing.
D: widely used in Automobile and sports fields.
The features of PP galss fiber cfrt sheet extrusion line: good plasticization, stableextrusion, high output, easy operation with PLC control system.
Video linkhttps://youtube.com/shorts/srdwcI3BWv4?si=arNfc9LGHUYu-ZF2
Yes, we supply detailed user manual for your reference. PLS read it carefully for guide. If there is still problem which could not be solved, PLS contact us, we are ready to help you anytime.
We supply perfect overseas service. We shall send engineers to overseas for machine installation and commissioning and test production guide, and also training to the workers of the buyer. And we are ready to give technical support anytime.
he guarantee period of our machine is 12 months after the machine is installed well in buyer's factory;
Painted the machine with anti-corrosion oil, and then covered with plastic film, and then packed into wooden case or fixed onto wooden pallet as per clients' requirements, or shall be loaded into container with film packing. After fixed all machines, we will use drying agent to keep container inside dry.
