PVC marble sheet extrusion line

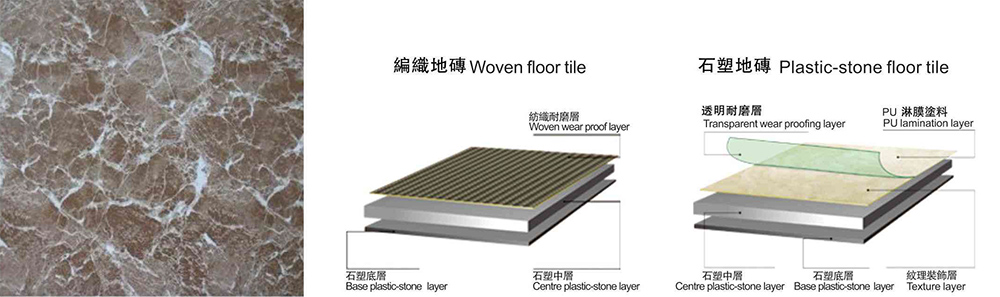

Artificial marble board is one sort of PVC board, itis well-know that PVC board is divided into coiledmaterial and sheet material, from structureartificial marble divided into homogeneouspenetrating sheetmultiple compositesheet semi- homogeneous penetrating sheet;from shape it can divided into square-type productand bar-type product. lt is featured with real visuaeffect, low production cost, it is widely used in themarket. PVC boards produced by the artificial marble board extrusion line are widely used in fields of advertise lettering, construction, decoration, windows and doors of furniture, etc.

1. Raw Material Handling System:

• Stores and feeds PVC resin, fillers, stabilizers, pigments, and other additives into the extruder.

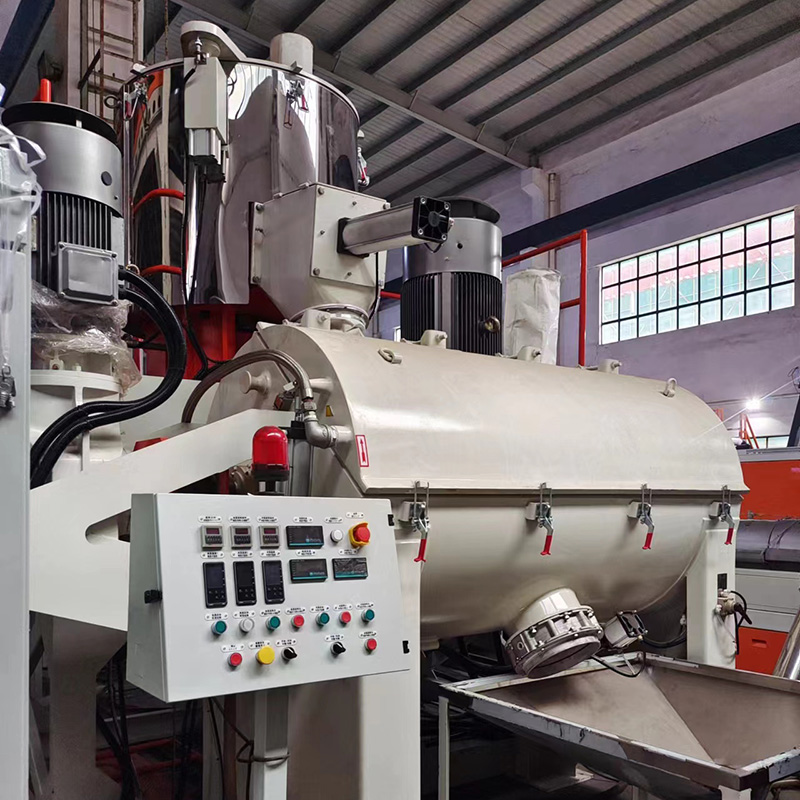

• May include a mixer or blender to ensure uniform material composition.

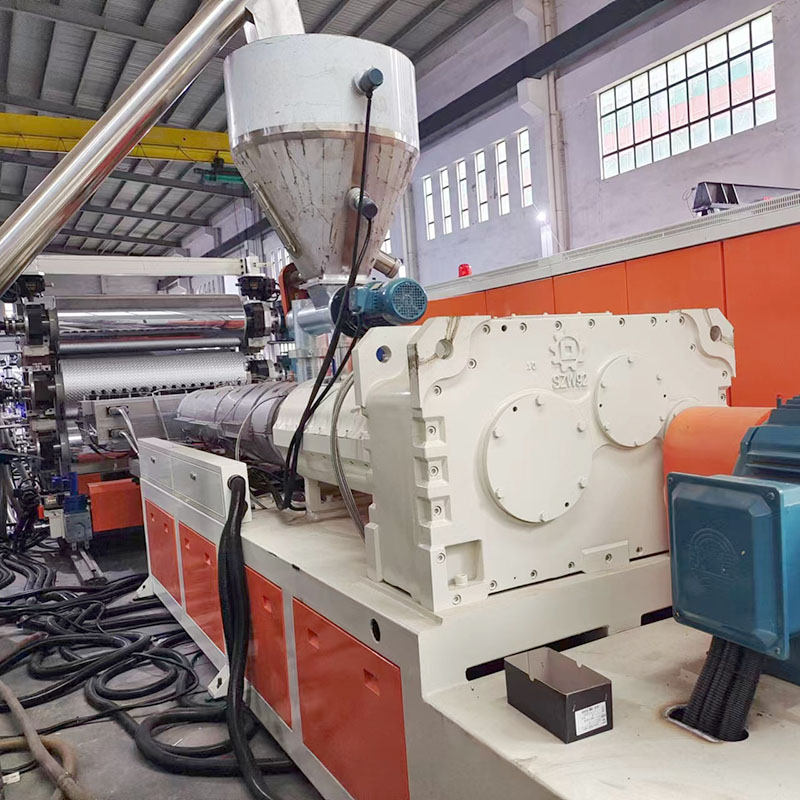

2. Artificial marble board extrusion line's extruder(conic twin screw extruder)

• The core component where the PVC mixture is melted, homogenized, and forced through a die.

• Typically a twin-screw extruder for better mixing and processing of the materials.

3. Die:

• Shapes the molten PVC into a flat sheet with the desired thickness and width.

• The die design ensures a smooth and uniform surface.

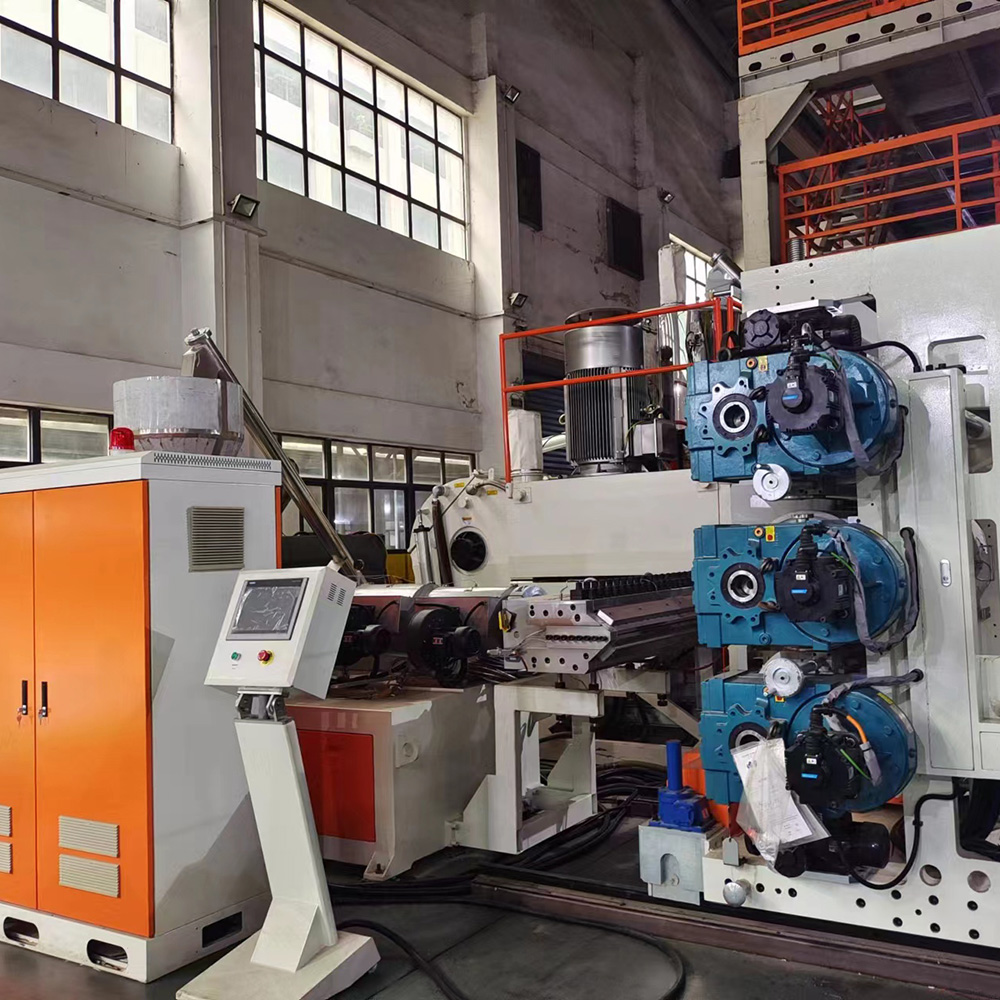

4. Calendering Unit:

• A series of heated rollers that calibrate the thickness, texture, and surface finish of the extruded sheet.

• Ensures a smooth and glossy surface resembling natural marble.

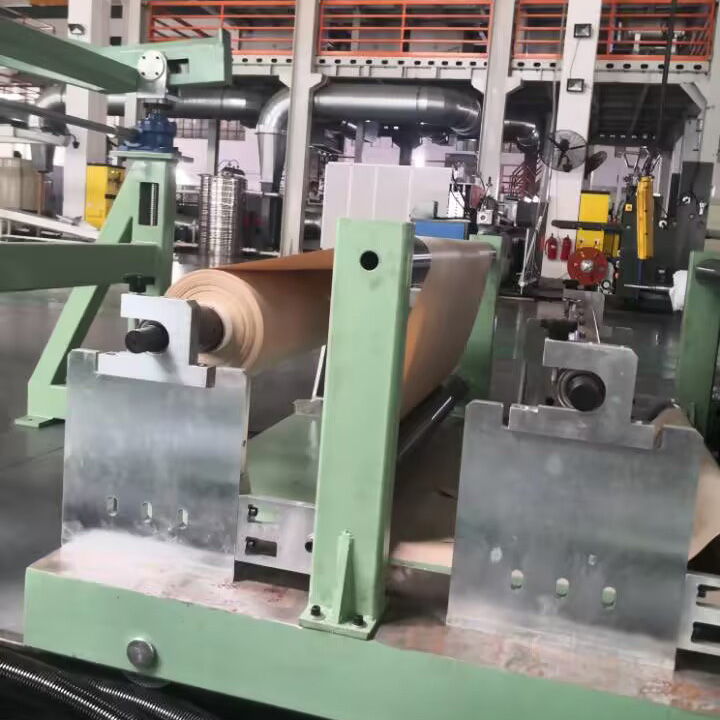

5. printed film lamination Unit :

• marble-like pattern printed film is laminated on the plain PVC sheet with heat and press pressure at calander rolles.

• Enhances the aesthetic appeal of the sheet.

6. Cooling System:

• Cools the sheet to stabilize its shape and finish.

• Typically includes air cooling or water-cooled rollers.

7. Cutting Unit:

• Cuts the continuous sheet into desired lengths or sizes.

• May use a guillotine cutter, rotary cutter, or automated cutting system.

8. Stacking and Packaging Unit:

• Stacks the finished sheets and prepares them for packaging.

• May include automated stacking and wrapping systems.

9. Control Panel of Artificial Marble Board Extrusion Line:

• A centralized control system (e.g., PLC or touchscreen interface) to monitor and adjust parameters such as temperature, speed, and pressure.

•


Afer-sales service

We provide 100% service. We practise the service principle that 'customer is God'. We provide thoughtful pre-sales and after-sales service. We produce PVC artifical marble board extrusion line that satisfy our customers and provide after-sales service including installation, startup operating extrusion machines, and personnel training. Customer compliments are our greatest wish.
