PP Hollow Sheet Extrusion Machine Parameters
| item | AF90-1000 PP hollow profile sheet machine | AF120-1500 PP hollow profile sheet machine | AF150-2000 PP hollow profile sheet machine | AF120&80-2000 PP hollow profile sheet machine |
| Sheet color | 1 color | 1 color | 1 color | 2 color ABA |
| grib structure | 1 layer or 2 layer | 1 layer or 2 layer | 1 layer or 2 layer | 1 layer or 2 layer |
| extrusion output | 150-180kg/hr up to GSM | 200-300kg/hr up to GSM | 250-500kg/hr up to GSM | 250-500kg/hr up to GSM |
| Our supplier brands: INOVANCE(servo motor), SIEMENS(MOTOR,PLC and touch screen), ABB (inverter), GUOMAO (gear box), JC TIMES( melt pump), MAAG(MELT PUMP), SCHNEIDER(AC CONTACTORS, AIR BREAKER) , We can follow client's requirements of components' brand | ||||

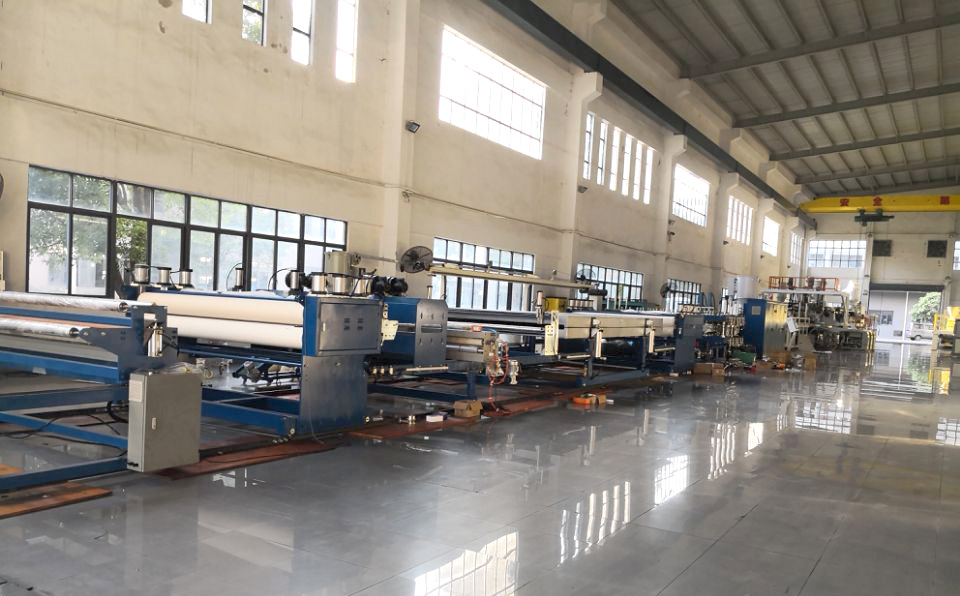

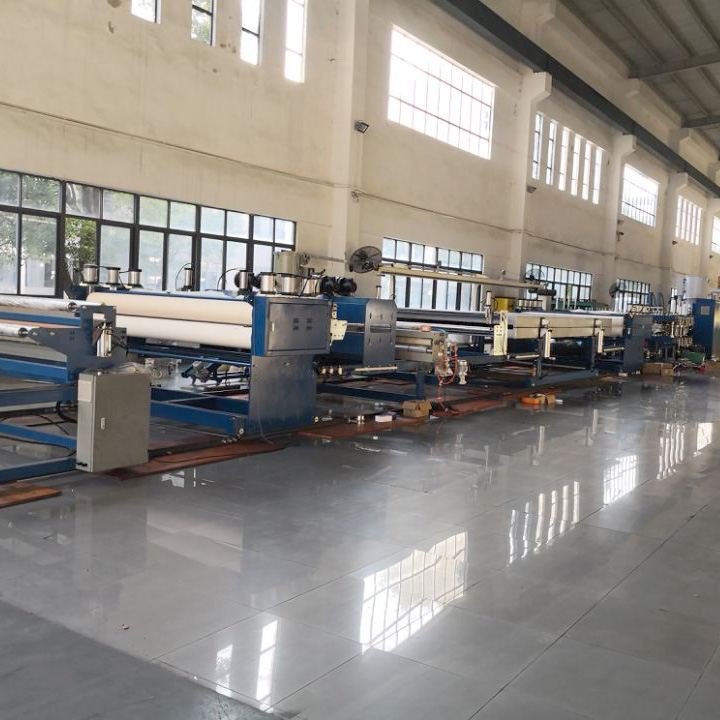

PP hollow profile sheet extrusion equipment introduction

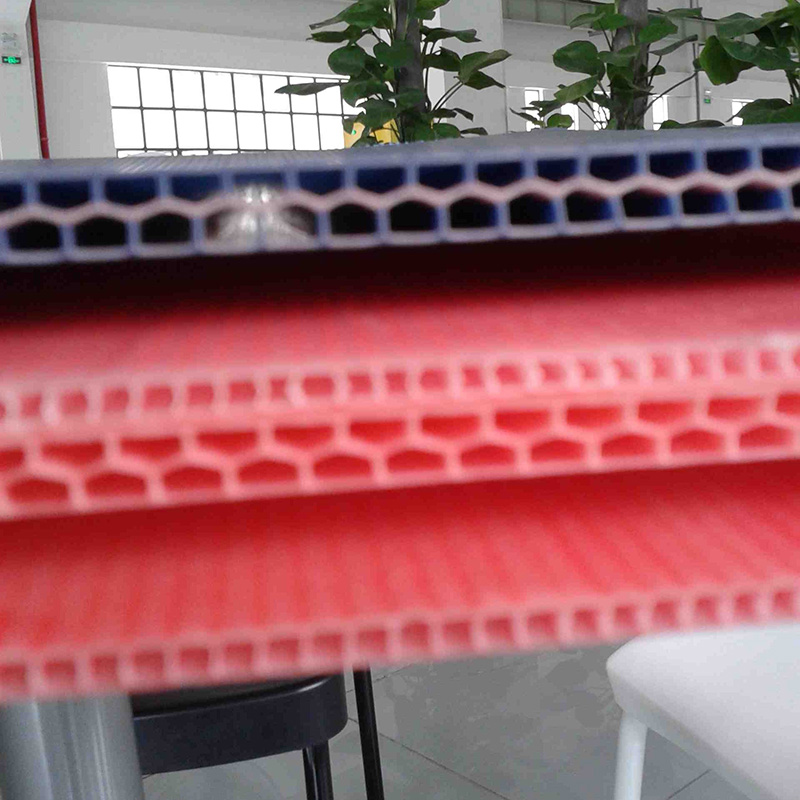

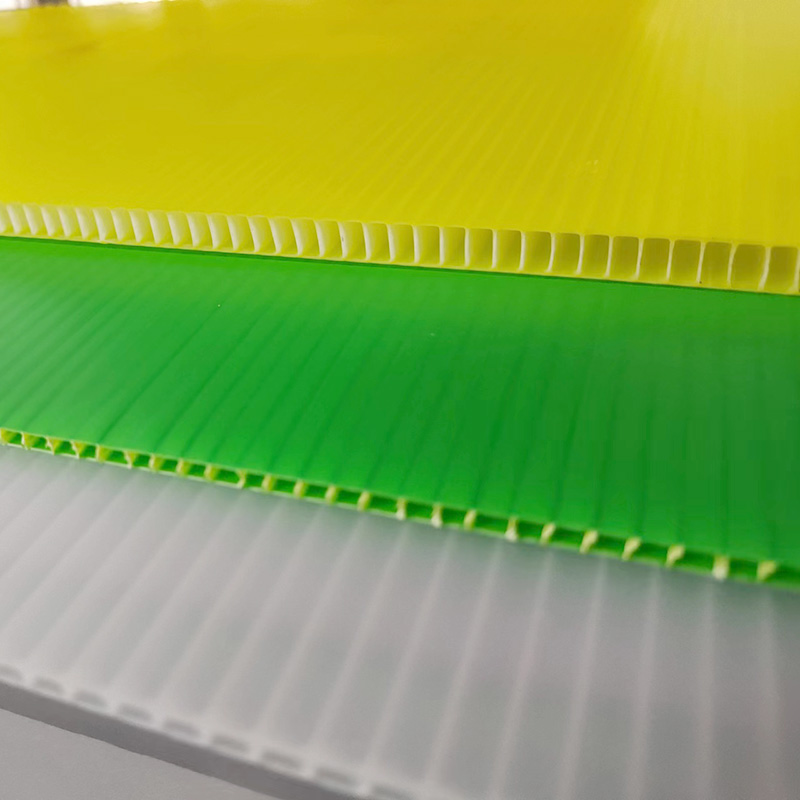

The PP carton board sheet extruders are widely used in the fields of advertisement, decoration, sound-proof, packing. Because PP carton board is featured by light-weight, strong, damp proof, anticorrosive advantages,it trends to replace the paper carton gradually and become the first choice to make packing cases.

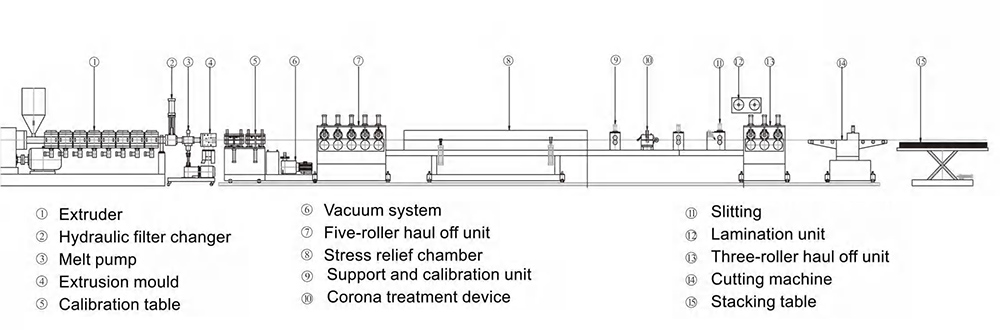

Extruder for plastic carton board sheet production line:Single screw extruder. The special designed screw and the advancedtemperature control system can ensure the good plasticizingstable extrusion and high output.
Screen changer: Client can choose hydraulic style screen changer or non-stop style screen changer
Die head: Made of super quality alloy and adopted adjustablerestrictor bars, provide the even pressure of the plastic flowat the die lips.lt ensures even thickness of the board withadjustable lips.
Yaoan is equipped with one-on-one designers who can customize the PP corrugated board extruion line according to the customer's specific needs.

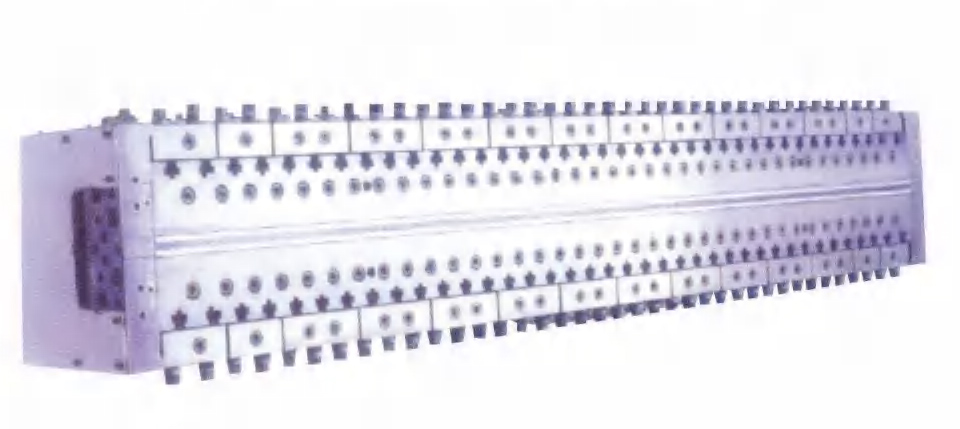

Extrusion mould for hollow sheet
specially designed for PP
Applicable thickness: 2mm-16mm
Applicable width: 1200-2500mm

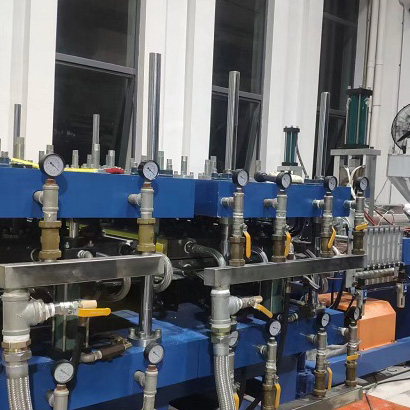

Vacuum calibrator: The vacuum system and calibrating systemincluding a heat-convection system array interleaved. This kind ofdesign guarantees the high precise degree of the calibration. Thevacuum system consists of two independent subsystems, whichis equipped with many pieces three point type closed loopvacuum line.Each closed loopis equipped with vacuumregulating system and vacuum display system. This guaranteesthe good calibration and the smooth surface of the board.
Take-off unit: This unit comprises two traction devices. The first one, driven by a powerful motor with a high reduction ratio gearbox, consists of five rollers. It delivers strong traction force, excellent low-speed performance, and evenly and synchronously pulls the sheet out of the calibrator. The second traction device is positioned after the infrared stabilizing oven. A trimming device mounted on the traction unit ensures smooth edge cutting.
Infrared stabilizing oven: Its advanced large-area conductive heating method reduces product stress, ensuring flatness and stability of the sheets.
Cutting machine: Equipped with a precise real-time fixed-length cutting system and an automatic lifting/feeding mechanism. Sharp blades made of special alloy steel ensure clean and precise cutting results.
The electrical control system of the line
Provide two kinds ofcontrol system:
first: automatic control by the conventional control panel for the line;
Second: a microprocessor unit (PLC) which is a synchromical control of the related emachines:(extruder motors, t haul-off unit )and be optimized with the operation characteristicsof the complete line.
Yes, we supply detailed user manual for your reference. PLS read it carefully for guide. If there is still problem which could not be solved, PLS contact us, we are ready to help you anytime.
We supply perfect overseas service. We shall send engineers to overseas for machine installation and commissioning and test production guide, and also training to the workers of the buyer. And we are ready to give technical support anytime.
he guarantee period of our machine is 12 months after the machine is installed well in buyer's factory;
Painted the machine with anti-corrosion oil, and then covered with plastic film, and then packed into wooden case or fixed onto wooden pallet as per clients' requirements, or shall be loaded into container with film packing. After fixed all machines, we will use drying agent to keep container inside dry.
