PC Hollow Sheet Extrusion Machine Introduction

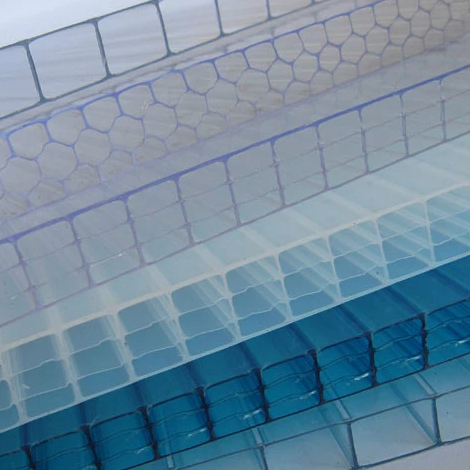

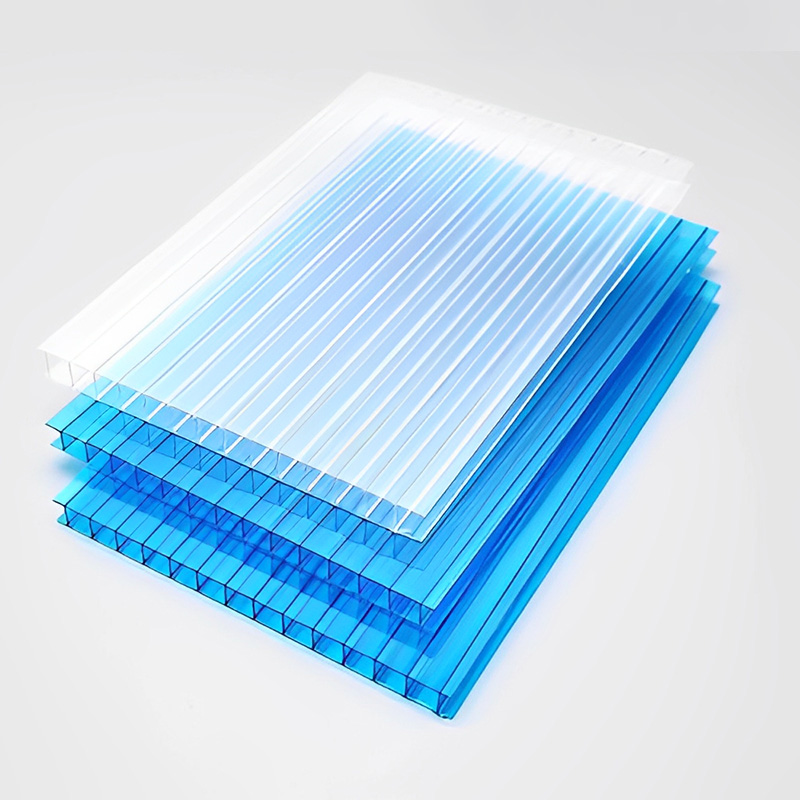

A PC (Polycarbonate) hollow profile sheet production line is a specialized manufacturing system designed to produce polycarbonate hollow sheets, which are widely used in construction, agriculture, and industrial applications due to their durability, light weight, and excellent light transmission properties. Below is an introduction to the key components and processes involved in such a production line:
1. Key Components of a PC hollow grid sheet extrusion line
-Raw Material Handling System
- Stores and feeds polycarbonate resin pellets into the extrusion system.
- Includes drying units to remove moisture from the resin, ensuring high-quality sheet production.
-Extrusion System:
- The core component where polycarbonate pellets are melted and extruded through a die to form hollow profiles.
- Equipped with precise temperature control to maintain optimal melting conditions.
- Die Head:
- Shapes the molten polycarbonate into the desired hollow profile structure (e.g., multi-wall or twin-wall sheets).
- Customizable to produce sheets of different thicknesses and designs.
- Calibration Unit:
- Ensures the extruded sheet maintains its shape and dimensions as it cools.
- Uses vacuum calibration to stabilize the hollow profile structure.
- Cooling System:
- Cools the extruded sheets to solidify them while maintaining their structural integrity.
- Typically includes water baths or air cooling systems.
- Haul-Off Unit:
- Pulls the cooled sheets through the production line at a controlled speed.
- Ensures consistent thickness and smooth surface finish.
- Cutting Unit:
- Cuts the continuous sheet into desired lengths using saws or guillotine cutters.
- Can be programmed for precise cutting based on customer requirements.
- Stacking and Packaging System:
- Automatically stacks the cut sheets and prepares them for packaging.
- Protects the sheets from scratches and damage during transportation.
2. Overview of Hollow Board Extruder Production Process
1. Material Preparation:
- Polycarbonate pellets are dried and fed into the extruder.
2. Extrusion:
- The pellets are melted and forced through a die to form hollow profiles.
3. alibration and Cooling:
- The extruded profiles are shaped and cooled to stabilize their structure.
4. Haul-Off and Cutting:
- The sheets are pulled through the line and cut to size.
5. Stacking and Packaging:
- The finished sheets are stacked, protected, and prepared for shipment.
3. Features of PP hollow sheet extrusion machine
**Lightweight: Easy to handle and install.
**High Impact Resistance: Durable and long-lasting.
**UV Protection: Often coated to resist UV degradation.
**Thermal Insulation: Excellent thermal properties for energy efficiency.
**Light Transmission: Allows natural light to pass through, reducing the need for artificial lighting.
4. Application of PP hollow sheet extrusion machine
- Construction: Skylights, roofing, and facades.

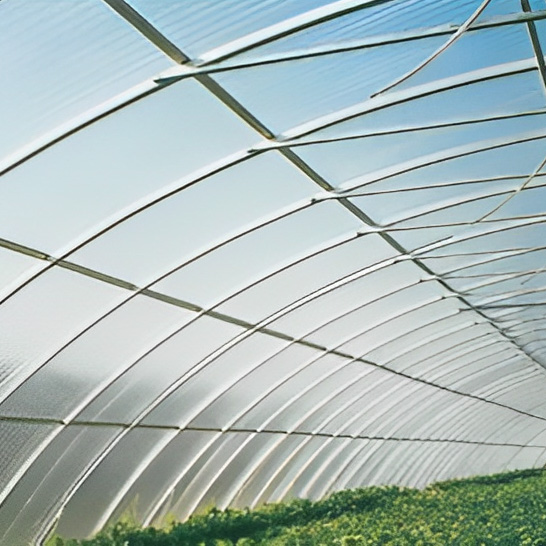

- Agriculture: Greenhouses and livestock shelters.
- Industrial: Partitions, noise barriers, and protective covers.
5. Advantages of the PC hollow corrugated sheet extruison line
- High Efficiency: Automated processes ensure consistent output.
- Customization: Ability to produce sheets in various sizes, thicknesses, and colors.
- Quality Control: Integrated systems ensure high-quality, defect-free sheets.

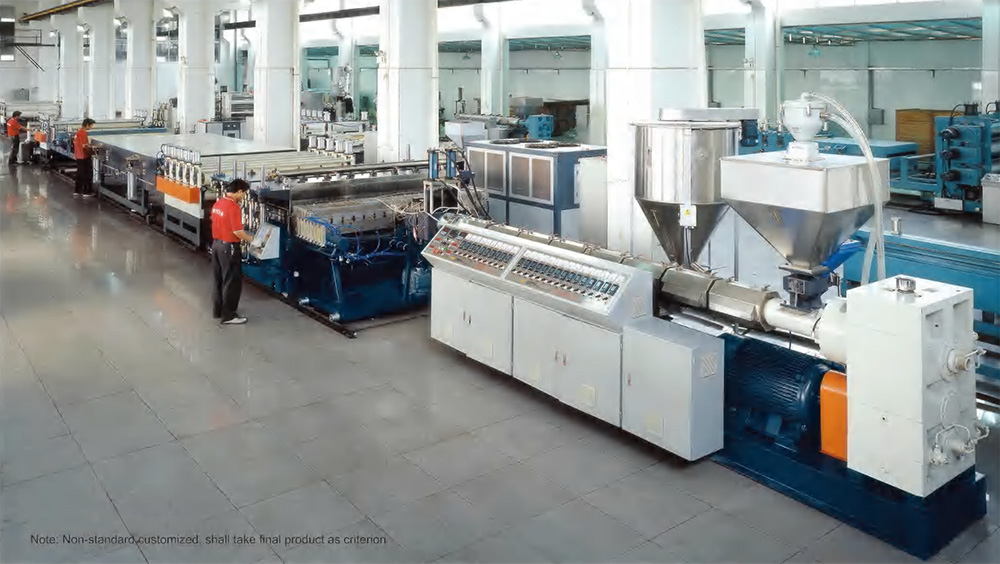

PC Hollow Sheet Extrusion Machine Details Introduction
This PC hollow grid sheet extrusion line is essential for meeting the growing demand for polycarbonate hollow profile sheets in various industries.
Adopted different screw design and specification of machinery, our PE hollow sheet extrusion machine can produce PC hollow shee of various size(Max.width:2300mm;thickness range 4mm-12mm).The products are widely used in the fields of advertisement, decoration, sound-proof, packing. Because itis featured by light-weight, strong, damp proof, anticorrosiveadvantages,it trends to replace the paper carton graduallyand become the first choice to make packing cases.

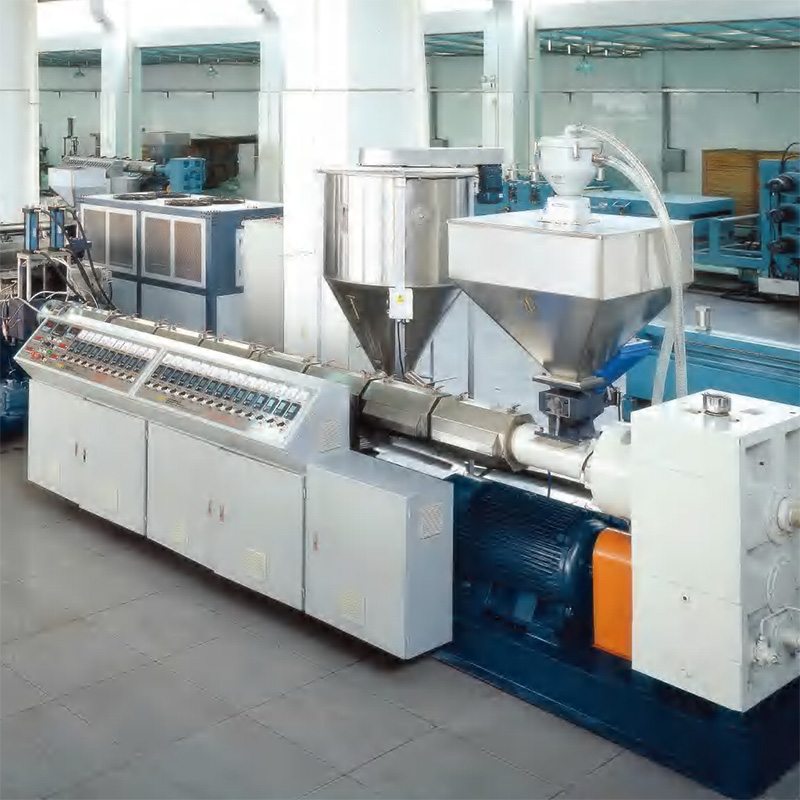

Extruder:The special designed screw and the advancedtemperature control system can ensure the good plasticizingstable extrusion and high output.
Screen changer:it is of hydraulic style fast screen changerand ensures the short course of the exchanging filtersDouble filters and special leakage-proof structure guaranteeits stable performance.
Die:Made of super quality alloy and adopted adjustablerestrictor bars, provide the even pressure of the plastic flowat the die lips.lt ensures even thickness of the board withadjustable lips.
Extrusion mould for hollow sheet
specially designed for PC、PP、PE
Applicable thickness:4mm-16mm
Applicable width: 1200-2500mm

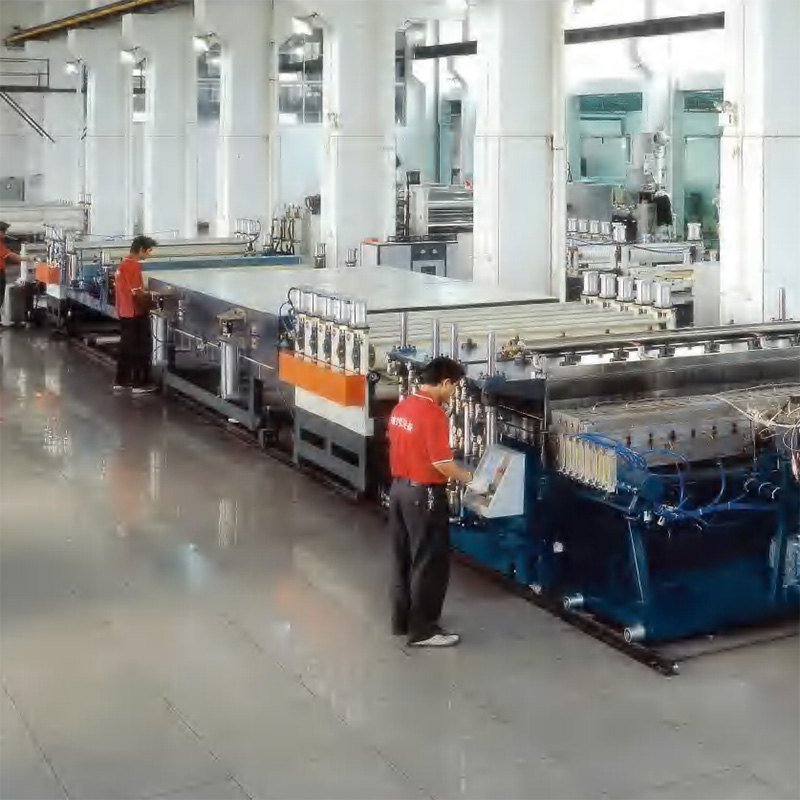

Vacuum calibrator: The vacuum system and calibrating systemincluding a heat-convection system array interleaved. This kind ofdesign guarantees the high precise degree of the calibration. Thevacuum system consists of two independent subsystems, whichis equipped with many pieces three point type closed loopvacuum line.Each closed loopis equipped with vacuumregulating system and vacuum display system. This guaranteesthe good calibration and the smooth surface of the board.
Take-off unit: There are two haul-off units. First one consists ofmulti-rolls and is driven by a strong motor with a speed reducerwith a big gear ratio. lt has strong take-off strength and performswell at slow speed so that it can draw the board up from the calibrator evenly and synchronally. Second one is put after theinfrared stabilizing oven. The slit unit fixed on the take-off unitensures the smooth cut of the edges.
Infrared stabilizing oven: Its advanced huge area conductiveheating style can relieve the stress of the products so as toensure the board is flat.
Cutting machine: Setting accurate instant fixing-length cutting andautomatic ascend and drop unloading system; the special alloysteel sharp blade ensures a good cut effect.
The electrical control system of the line
Provide two kinds ofcontrol system:
first: automatic control by the conventional controlpanel for the line;
Second: a microprocessor unit (PLC) which canact as acentral control of the related parameters of themachines:(screw revolutions, temperatures, pressure, alarms,out-put etc )and be optimized with the operation characteristicsof the complete line.
Yes, we supply detailed user manual for your reference. PLS read it carefully for guide. If there is still problem which could not be solved, PLS contact us, we are ready to help you anytime.
We supply perfect overseas service. We shall send engineers to overseas for machine installation and commissioning and test production guide, and also training to the workers of the buyer. And we are ready to give technical support anytime.
he guarantee period of our machine is 12 months after the machine is installed well in buyer's factory;
Painted the machine with anti-corrosion oil, and then covered with plastic film, and then packed into wooden case or fixed onto wooden pallet as per clients' requirements, or shall be loaded into container with film packing. After fixed all machines, we will use drying agent to keep container inside dry.
