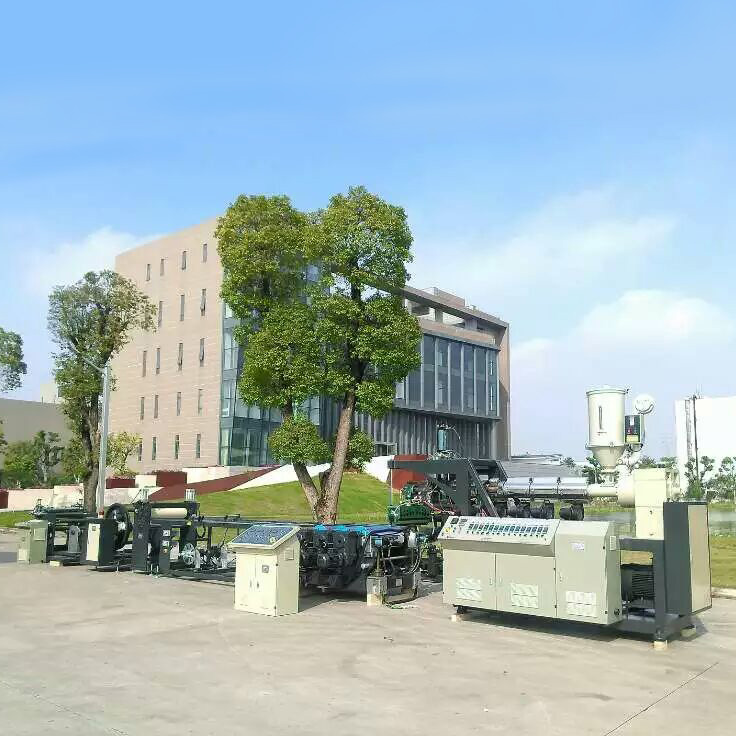

Plastic Sheet Extrusion Machine

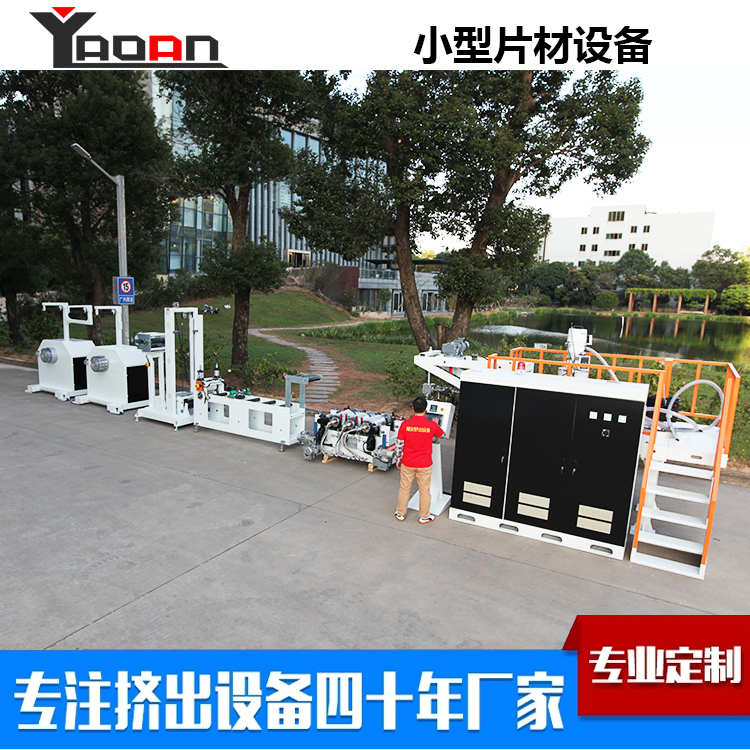

PLASTIC SHEET EXTRUSION LINE is a general name of various plastic sheet machines: such as single layer extrusione line, multilayer sheet extrusion line, small lab sheet machine, big sheet machines.

A PET sheet extrusion line is a manufacturing system used to produce continuous plastic sheets of various thicknesses, widths, and materials. These sheets are widely used in industries such as packaging, construction, automotive, and consumer goods. The extrusion line processes thermoplastic materials like PP (Polypropylene), PE (Polyethylene), PVC (Polyvinyl Chloride), PET (Polyethylene Terephthalate),PLA, TPR, TPE, PC, ABS, PMMA and PS (Polystyrene) into flat sheets.

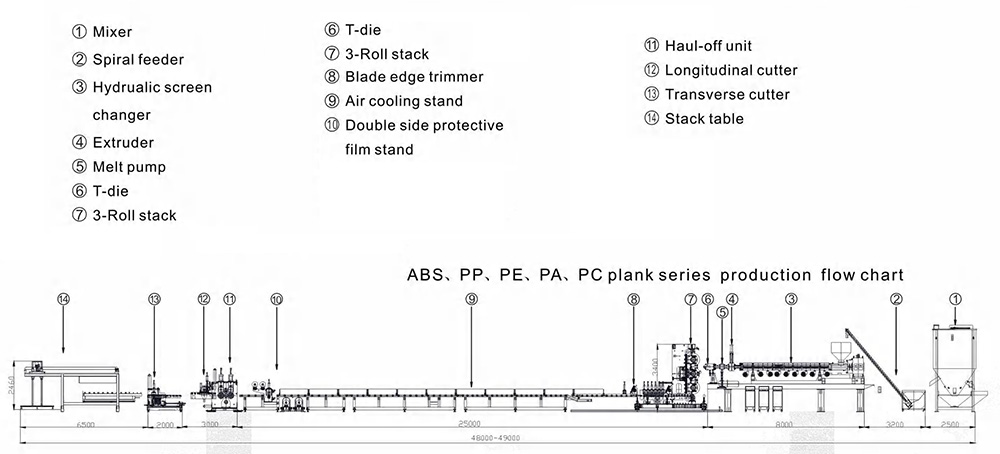

Key Components of a Plastic Sheet Extrusion Line

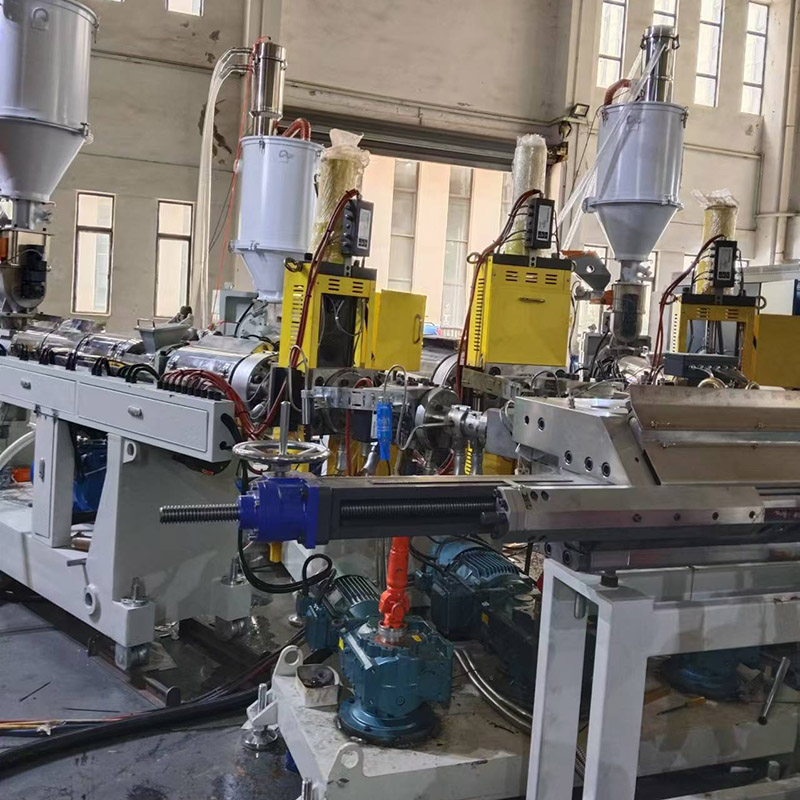

1. Extruder:

• The heart of the system, where raw plastic material (in pellet or powder form) is melted and homogenized.

• Consists of a screw and barrel that heat and mix the material to a molten state.

2. Die Head:

• The molten plastic is forced through a flat die to form a continuous sheet.

• The die determines the width and thickness of the sheet.

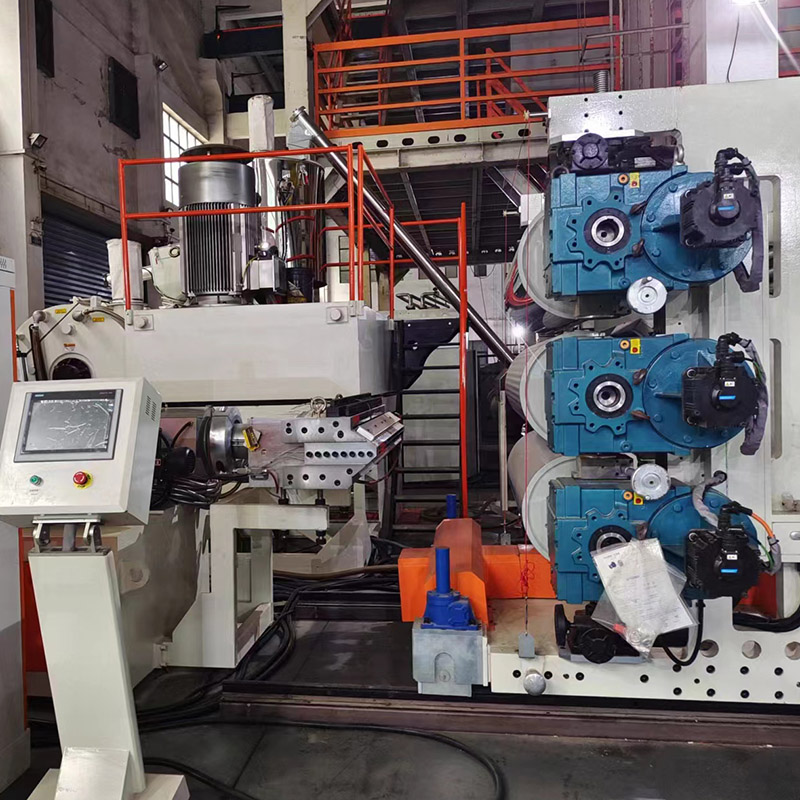

3. Calendering Rolls:

• A series of precision rolls that cool and shape the molten plastic into a uniform sheet.

• These rolls also control the surface finish (glossy, matte, or textured).

4. Cooling System:

• After exiting the die, the hot plastic sheet passes through cooling systems (air or water) to solidify it.

5. Haul-Off Unit:

• Pulls the sheet through the line at a controlled speed to maintain consistency.

6. Thickness Gauge:

• Monitors and ensures the sheet's thickness is uniform across its width.

7. Cutting and Winding Unit:

• The finished sheet is trimmed to the desired width and wound into rolls for storage or further processing.

1. Material Feeding:

• Plastic pellets or granules are fed into the extruder hopper, often with additives like colorants, UV stabilizers, or flame retardants.

2. Extrusion:

• The material is melted and mixed in the extruder, then pushed through the flat die to form a continuous sheet.

3. Calendering and Cooling:

• The sheet passes through calendering rolls to achieve the desired thickness and surface finish, followed by cooling to solidify it.

4. Trimming and Winding:

• The edges of the sheet are trimmed, and the sheet is wound into rolls for storage or transport.

Types of Plastic Sheets Produced

• Single-Layer Sheets: Made from a single type of plastic material.

• Multi-Layer Sheets: Co-extruded sheets with multiple layers for enhanced properties (e.g., barrier layers for packaging).

• Textured Sheets: Sheets with embossed or patterned surfaces for specific applications.

• Thermoformable Sheets: Sheets designed for further processing into products like trays, containers, or automotive parts.

• Packaging: Food containers, blister packs, and clamshells.

• Construction: Wall panels, roofing, and insulation.

• Automotive: Interior linings, dashboards, and trim.

• Consumer Goods: Stationery, displays, and signage.

• Industrial: Protective covers, machine guards, and tanks.

• High Production Efficiency: Capable of producing large volumes of plastic sheets.

• Customization: Can produce sheets of varying thicknesses, widths, and materials.

• Consistency: Ensures uniform quality and performance of the sheets.

• Versatility: Suitable for a wide range of thermoplastic materials and applications.

• Automation: Modern lines are highly automated, reducing labor costs and human error.

Conclusion

A PLAS sheet extrusion line is a versatile and efficient system for producing high-quality plastic sheets used in numerous industries. Its ability to process various materials and produce customized sheets makes it an essential tool for modern manufacturing. Whether for packaging, construction, or automotive applications, plastic pet sheet extrusion lines play a critical role in meeting industry demands.
